| Basic Information | |||

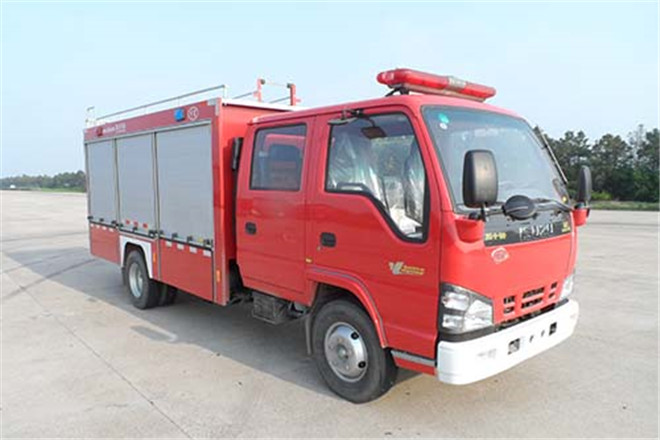

| Usage | Fire Extinguishing Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6820mm | ||
| Width | 1880mm | ||
| Height | 2830mm | ||
| Curb Weight | 4625kg | ||
| Gross Weight | 5000kg | ||
| Seats | 2+3 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | QL1070A5KWY | ||
| Front/Rear Overhang | 1015/1990mm | ||
| Number of Leaf Springs | 8/6+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3815mm | ||
| Axle Load | 1710/3290kg | ||
| Front Wheel Track | 1504mm | ||
| Rear Wheel Track | 1425mm | ||
| Approaching/Departuring Angle | 24/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00-16 14PR,7.00R16 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4KH1CN5HS | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 96kW | 2999ml |
| 4KH1-TCG51 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 88kW | 2999ml |
| 4KH1CN5HD | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 96kW | 2999ml |
