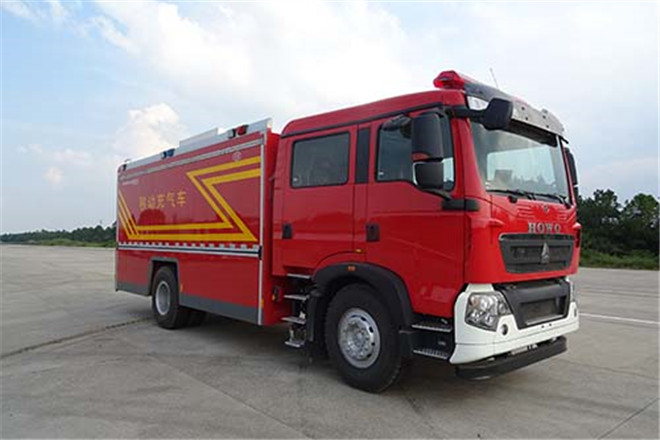

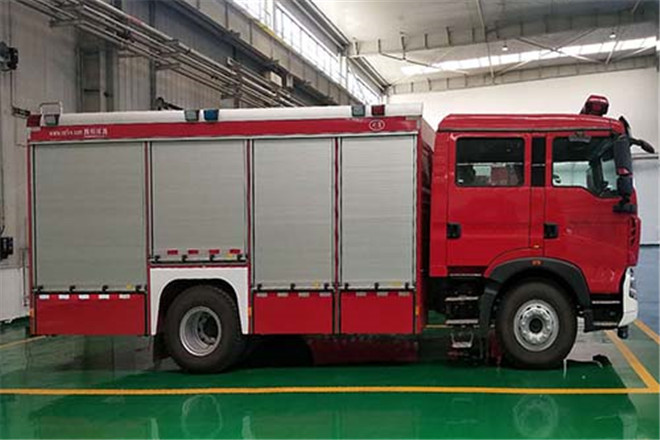

Chuanxiao SXF5151TXFGQ54 Air Supply Fire Truck

Basic Information
Usage	Fire Extinguishing Truck
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	8800mm
Width	2500mm
Height	3500mm
Curb Weight	14950kg
Gross Weight	15400kg
Seats	2+4
Max Speed	100km/h
Chassis
Chassis Model	ZZ5207TXFV471GE5
Front/Rear Overhang	1430/2670mm
Number of Leaf Springs	4/5,4/9+6,10/9+6,11/9+8,3/9+8,3/3+2
Number of Axles	2
Wheelbase	4200,4500,4600,4700,5000,5600,5600mm
Axle Load	4400/11000kg
Front Wheel Track	1980,2035mm
Rear Wheel Track	1850mm
Approaching/Departuring Angle	19/10°
Tire
Number of Tires	6
Tire	315/80R22.5,12.00R20
Engine
Model	Brand	Power	Displacement
MC07.28-50	China National Heavy Duty Truck Group Co., Ltd.	206kW	6870ml
MC07.31-50	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07.34-50	China National Heavy Duty Truck Group Co., Ltd.	248kW	6870ml
MC11.36-50	China National Heavy Duty Truck Group Co., Ltd.	268kW	10518ml
MC11.40-50	China National Heavy Duty Truck Group Co., Ltd.	297kW	10518ml
