| Basic Information | |||

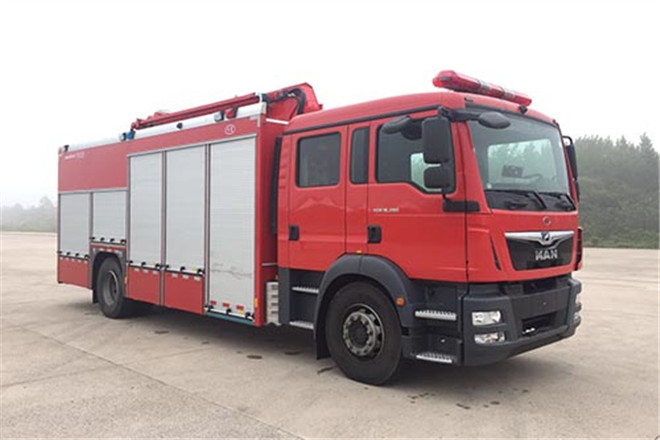

| Usage | Fire Extinguishing Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9650mm | ||
| Width | 2500mm | ||
| Height | 3800mm | ||
| Curb Weight | 13550kg | ||
| Gross Weight | 14000kg | ||
| Seats | 2+4 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | TGM18.290 | ||
| Front/Rear Overhang | 1400/2475mm | ||
| Number of Leaf Springs | 1/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5775mm | ||
| Axle Load | 6290/7710kg | ||
| Front Wheel Track | 2066mm | ||
| Rear Wheel Track | 1802mm | ||
| Approaching/Departuring Angle | 17/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D0836LFLAL | Germany MAN Commercial Vehicle Co., Ltd. | 216kW | 6871ml |
