| Basic Information | |||

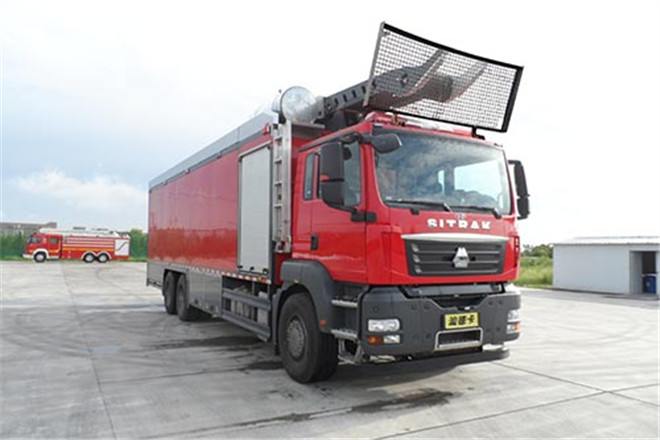

| Usage | Fire Extinguishing Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards,G B3847-2005 | ||
| Length | 12000mm | ||
| Width | 2520mm | ||
| Height | 3960mm | ||
| Curb Weight | 33550kg | ||
| Gross Weight | 33900kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | ZZ5356V524ME1 | ||
| Front/Rear Overhang | 1475/3200mm | ||
| Number of Leaf Springs | 3/5,3/12,4/5,4/12,10/12 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4325+1350,4300+1400,4625+1350,4600+1400,4650+1400,4675+1350,5200+1400,5000+1400,5025+1350,5800+1400mm | ||
| Axle Load | 8800/12550/12550kg | ||
| Front Wheel Track | 2022mm | ||
| Rear Wheel Track | 1830/1830mm | ||
| Approaching/Departuring Angle | 19/9° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MC11.40-50 | China National Heavy Duty Truck Group Co., Ltd. | 297kW | 10518ml |
| MC11.44-50 | China National Heavy Duty Truck Group Co., Ltd. | 327kW | 10518ml |
