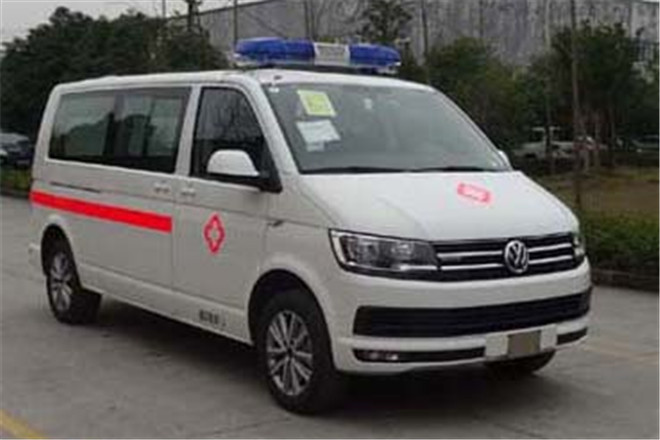

Chongqing Jinguan SLT5030XJHN1W Ambulance
| Basic Information |
| Usage |
Medical Vehicle |
| Fuel Type |
Gasoline |
| Emission Standard |
GB18352.5-2013 national Ⅴ emission standards |
| Length |
5304mm |
| Width |
1904mm |
| Height |
2145,2485mm |
| Curb Weight |
2480kg |
| Gross Weight |
3200kg |
| Seats |
3-7 |
| Max Speed |
197km/h |
| Chassis |
| Chassis Model |
CARAVELLE CJKAAD75U1 |
| Front/Rear Overhang |
909/995mm |
| Number of Leaf Springs |
-/- |
| Number of Axles |
2 |
| Wheelbase |
3400mm |
| Axle Load |
1600/1600kg |
| Front Wheel Track |
1624mm |
| Rear Wheel Track |
1630mm |
| Approaching/Departuring Angle |
21/15° |
| Tire |
| Number of Tires |
4 |
| Tire |
235/55 R17,235/55 ZR17 |
| Engine |
| Model |
CJK |
| Power |
150kW |
| Brand |
VW AG |
| Displacement |
1984ml |
