| Basic Information | |||

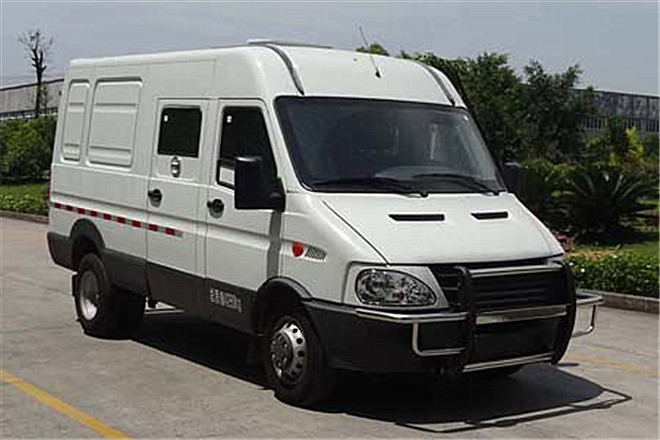

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5760,5580mm | ||
| Width | 2000mm | ||
| Height | 2540,2790mm | ||
| Curb Weight | 2980kg | ||
| Gross Weight | 4280kg | ||
| Seats | 3+3,3+2 | ||
| Max Speed | 135km/h | ||
| Chassis | |||
| Chassis Model | NJ5045XXYDD | ||
| Front/Rear Overhang | 1180/1270,1000/1270mm | ||
| Number of Leaf Springs | -/7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3310mm | ||
| Axle Load | 1620/2660kg | ||
| Front Wheel Track | 1695mm | ||
| Rear Wheel Track | 1540mm | ||
| Approaching/Departuring Angle | 19/15,20/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F1CE34818 | Naveco Ltd. | 107kW | 2998ml |
| SOFIM8140.43S5 | Naveco Ltd. | 95kW | 2798ml |
