| Basic Information | |||

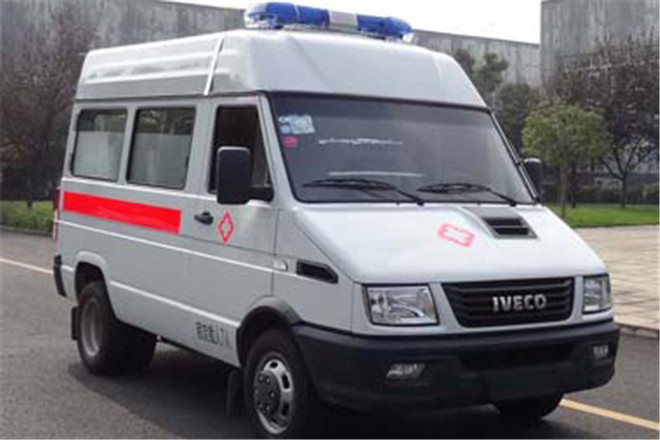

| Usage | Ambulance | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 4850mm | ||
| Width | 2000mm | ||
| Height | 2650mm | ||
| Curb Weight | 3000kg | ||
| Gross Weight | 3550kg | ||
| Seats | 3-7 | ||
| Max Speed | 125km/h | ||
| Chassis | |||
| Chassis Model | NJ6495ACMZ | ||
| Front/Rear Overhang | 960/1090mm | ||
| Number of Leaf Springs | -/5,-/6,-/2,-/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2800mm | ||
| Axle Load | 1400/2150kg | ||
| Front Wheel Track | 1695,1645mm | ||
| Rear Wheel Track | 1540,1538mm | ||
| Approaching/Departuring Angle | 22.5/16.5° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16LT,195/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| SOFIM8140.47Z5 | Naveco Ltd. | 90kW | 2499ml |
| SOFIM8140.43S5 | Naveco Ltd. | 95kW | 2798ml |
