| Basic Information | |||

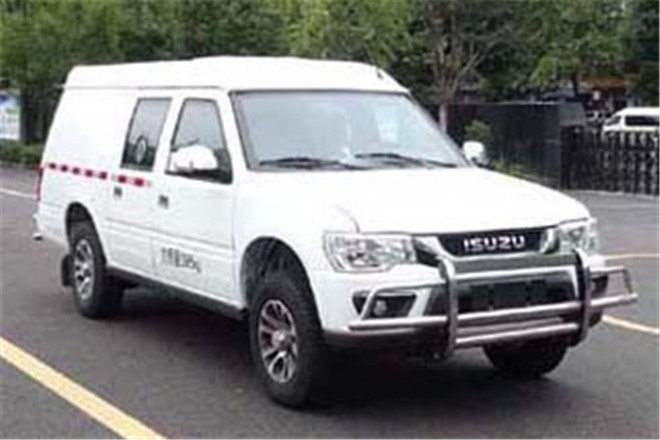

| Usage | Police Van | ||
| Fuel Type | Gasoline | ||
| Emission Standard | GB18352.5-2013 national Ⅴ emission standards | ||
| Length | 5295,5115,5215,5195,5241,5061,5161,5141mm | ||
| Width | 1690mm | ||
| Height | 1875,1810,1820mm | ||
| Curb Weight | 2120kg | ||
| Gross Weight | 2720kg | ||
| Seats | 2+3 | ||
| Max Speed | 130km/h | ||
| Chassis | |||
| Chassis Model | QL1030CBGDB | ||
| Front/Rear Overhang | 939/1331,839/1251,939/1251,839/1331,885/1331,785/1251,885/1251,785/1331mm | ||
| Number of Leaf Springs | -/6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3025mm | ||
| Axle Load | 975/1745kg | ||
| Front Wheel Track | 1425mm | ||
| Rear Wheel Track | 1435mm | ||
| Approaching/Departuring Angle | 28/17,30/20,28/20,30/17,22/17,23.5/20,22/20,23.5/17° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 215/75R15,235/75R15 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4ZE5-MPI | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 89kW | 2559ml |
