| Basic Information | |||

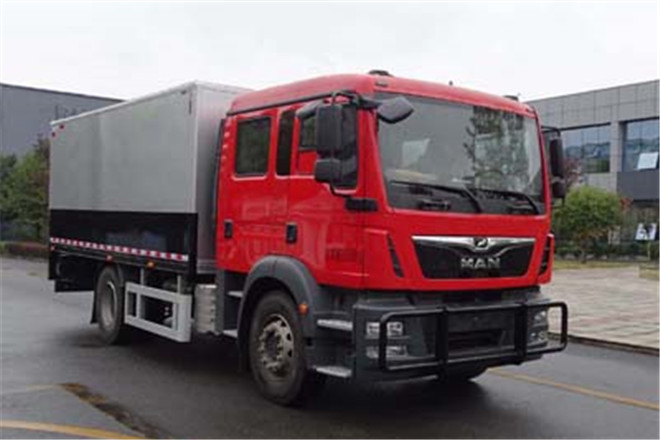

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8640,8760,8205,8325mm | ||
| Width | 2540mm | ||
| Height | 3170,3500mm | ||
| Curb Weight | 9250kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2+3 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | TGM18.340 | ||
| Front/Rear Overhang | 1400/2515,1520/2515,1400/2380,1520/2380mm | ||
| Number of Leaf Springs | 1/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 4725,4425mm | ||
| Axle Load | 7000/11000kg | ||
| Front Wheel Track | 2066mm | ||
| Rear Wheel Track | 1802mm | ||
| Approaching/Departuring Angle | 17/10° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80 R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D0836LFLAJ | Germany MAN Commercial Vehicle Co., Ltd. | 254kW | 6871ml |
| D0836LFLAM | Germany MAN Commercial Vehicle Co., Ltd. | 254kW | 6871ml |
