| Basic Information | |||

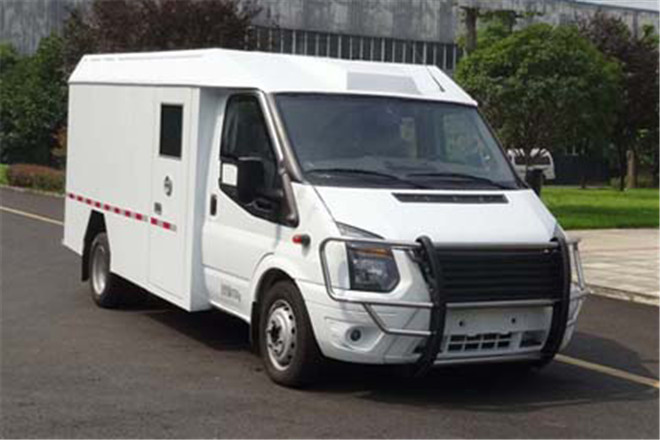

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995,5815mm | ||
| Width | 2096mm | ||
| Height | 2360,2495,2195mm | ||
| Curb Weight | 3135kg | ||
| Gross Weight | 4250kg | ||
| Seats | 3+3,3+2,2+3 | ||
| Max Speed | 135km/h | ||
| Chassis | |||
| Chassis Model | JX1045TJA25 | ||
| Front/Rear Overhang | 1113/1132,933/1132,933/1312mm | ||
| Number of Leaf Springs | -/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3750mm | ||
| Axle Load | 1540/2710kg | ||
| Front Wheel Track | 1745mm | ||
| Rear Wheel Track | 1642mm | ||
| Approaching/Departuring Angle | 20/21,22/21° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 185/75R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DURATORQ4D225H | Jiangling Motor Corporation Ltd. | 100kW | 2198ml |
