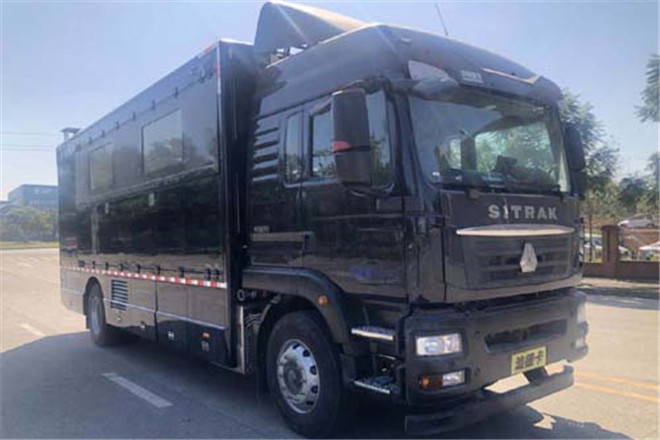

Chongqing Jinguan SLT5170XCCFH2L Dining Vehicle

Basic Information
Usage	Vehicle for Special Work
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	9370mm
Width	2520mm
Height	3830mm
Curb Weight	15405kg
Gross Weight	16600kg
Seats	3,2
Max Speed	110km/h
Chassis
Chassis Model	ZZ5186XXYN561GF1
Front/Rear Overhang	1450/2320mm
Number of Leaf Springs	3/4,2/3+2,3/3+2,3/9+8,3/7+3,3/7+6,7/7+3,7/7+6,11/9+8,3/-
Number of Axles	2
Wheelbase	4500,4700,5000,5200,5600,5800,6300,3600,3800,4200mm
Axle Load	6600/10000kg
Front Wheel Track	1900,1950,1998,2015,2035mm
Rear Wheel Track	1850mm
Approaching/Departuring Angle	16/12°
Tire
Number of Tires	6
Tire	295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR,315/60R22.5 18PR
Engine
Model	Brand	Power	Displacement
MC05H.25-60	China National Heavy Duty Truck Group Co., Ltd.	180kW	4910ml
MC07.25-60	China National Heavy Duty Truck Group Co., Ltd.	188kW	6870ml
MC07.27-60	China National Heavy Duty Truck Group Co., Ltd.	202kW	6870ml
MC07.29-60	China National Heavy Duty Truck Group Co., Ltd.	213kW	6870ml
MC07.31-60	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	6870ml
MC07.34-60	China National Heavy Duty Truck Group Co., Ltd.	251kW	6870ml
MC07H.29-60	China National Heavy Duty Truck Group Co., Ltd.	213kW	7360ml
MC07H.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	7360ml
MC07H.35-60	China National Heavy Duty Truck Group Co., Ltd.	257kW	7360ml
WP6H245E61	Weichai Power Co., Ltd.	180kW	6220ml
WP6H270E61	Weichai Power Co., Ltd.	199kW	6220ml
WP7.270E61	Weichai Power Co., Ltd.	199kW	7470ml
WP7.300E61	Weichai Power Co., Ltd.	220kW	7470ml
WP8.350E61	Weichai Power Co., Ltd.	257kW	7800ml
