| Basic Information |
| Usage |

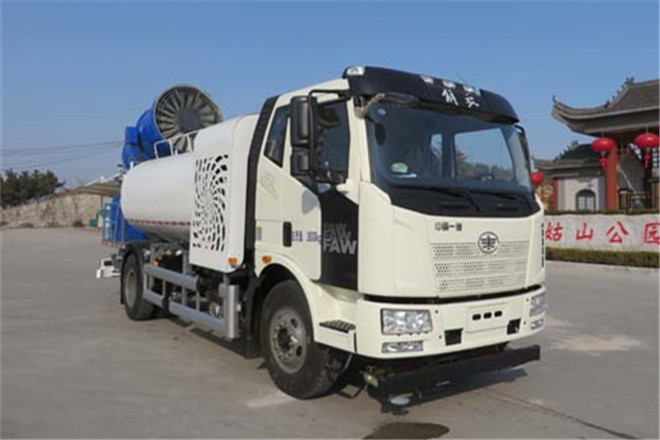

Multi-purpose Dust Suppression Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
9480mm |
| Width |
2506mm |
| Height |
3955mm |
| Curb Weight |
10930kg |
| Gross Weight |
18000kg |
| Seats |
3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
CA1180P62K1L2A1E6Z |
| Front/Rear Overhang |
1400/2660mm |
| Number of Leaf Springs |
10/12+8,12/12+8,13/12+8,7/7+6,9/12+8,12/10+9,7/7+3 |
| Number of Axles |
2 |
| Wheelbase |
5300,5000,4700,4500,5600,5800,4200,4000,3800mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
1928,1827,1950,1938mm |
| Rear Wheel Track |
1878,1860mm |
| Approaching/Departuring Angle |
10/10° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20,11.00R20,295/80R22.5,275/80R22.5 |
| Engine |
| Model |
CA4DK1-18E6,CA4DK1-22E6,CA6DH1-22E6,CA6DH1-24E6,D6.7NS6B230 |
| Power |
139,165,165,179,169kW |
| Brand |
China FAW Group Co., Ltd.;China FAW Group Co., Ltd.;China FAW Group Co., Ltd.;China FAW Group Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
4764,4764,5700,5700,6700ml |
