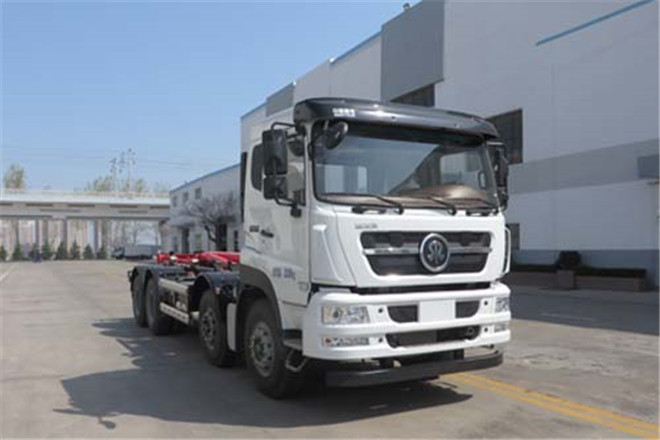

Yantai Haide CHD5311ZXXE5 Detachable Container Garbage Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	9055mm
Width	2510mm
Height	3150mm
Curb Weight	12790kg
Gross Weight	31000kg
Seats	2,3
Max Speed	101km/h
Chassis
Chassis Model	ZZ1313N466GE1
Front/Rear Overhang	1500/1155mm
Number of Leaf Springs	11/11/10,3/3/10,3/3/4,3/3/-
Number of Axles	4
Wheelbase	1800+3225+1400,1800+3250+1350,1800+3825+1400,1800+3850+1350,2050+3975+1400,2050+4000+1350,1800+4175+1400,1800+4200+1350,1800+4575+1400,1800+4600+1350mm
Axle Load	6500/7000/17500(二轴组)kg
Front Wheel Track	2015/2015,2035/2035mm
Rear Wheel Track	1860/1860mm
Approaching/Departuring Angle	14/24°
Tire
Number of Tires	12
Tire	315/80R22.5 18PR/315/80R22.5 16PR,295/80R22.5,12R22.5,11.00R20,12.00R20 16PR
Engine
Model	Brand	Power	Displacement
MC07.28-50	China National Heavy Duty Truck Group Co., Ltd.	206kW	6870ml
MC07.31-50	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07.34-50	China National Heavy Duty Truck Group Co., Ltd.	248kW	6870ml
MC07.35-50	China National Heavy Duty Truck Group Co., Ltd.	254kW	6870ml
