| Basic Information | |||

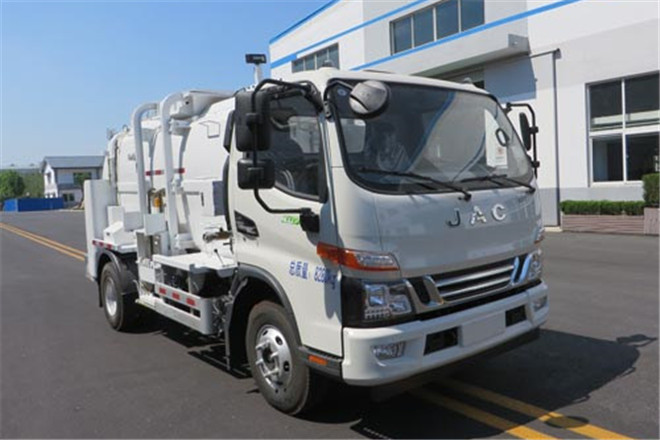

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5820mm | ||
| Width | 2123mm | ||
| Height | 2590mm | ||
| Curb Weight | 4850kg | ||
| Gross Weight | 8280kg | ||
| Seats | 3 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | HFC1081P31K1C7ZS | ||
| Front/Rear Overhang | 1051/1404mm | ||
| Number of Leaf Springs | 9/12+6,9/9+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3365,3845,4200mm | ||
| Axle Load | 3000/5280kg | ||
| Front Wheel Track | 1695mm | ||
| Rear Wheel Track | 1600,1785mm | ||
| Approaching/Departuring Angle | 25/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50R16LT 14PR,8.25R16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D30TCIF2 | Kunming Yunnei Power Co., Ltd. | 120kW | 2977ml |
| HFC4DE2-2E | Anhui Cummins Engine Co., Ltd. | 117kW | 2951ml |
| B4.0NS6B160 | Anhui Cummins Engine Co., Ltd. | 118kW | 4000ml |
