| Basic Information | |||

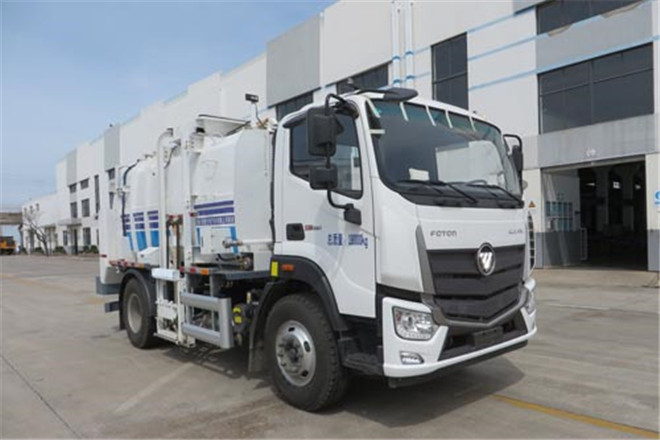

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 6925mm | ||
| Width | 2480mm | ||
| Height | 3130mm | ||
| Curb Weight | 7810kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1186VLPFD-3K | ||
| Front/Rear Overhang | 1270/1855mm | ||
| Number of Leaf Springs | 10/10+8,3/4+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,4200mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1952,1972mm | ||
| Rear Wheel Track | 1840mm | ||
| Approaching/Departuring Angle | 18/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 11R22.5 18PR,10.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F4.5NS6B190 | Beijing Foton Cummins Engine Co., Ltd. | 140kW | 4500ml |
