| Basic Information | |||

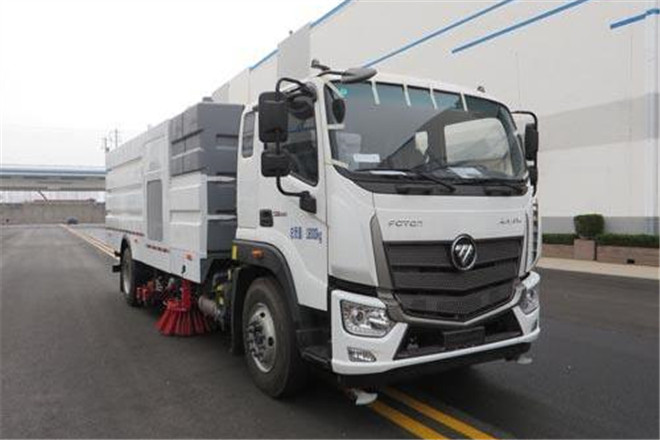

| Usage | Vacuum Sweeper | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 9260mm | ||
| Width | 2475mm | ||
| Height | 3060mm | ||
| Curb Weight | 12130kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | BJ1186VKPHK-1K | ||
| Front/Rear Overhang | 1270/2490mm | ||
| Number of Leaf Springs | 10/8+8,10/10+8,3/4+3,10/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500,5500,5150,5750,4700mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 2008,1960,1931,1982mm | ||
| Rear Wheel Track | 1860,1840mm | ||
| Approaching/Departuring Angle | 15/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| D6.7NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6700ml |
| F4.5NS6B220 | Beijing Foton Cummins Engine Co., Ltd. | 162kW | 4500ml |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
