| Basic Information | |||

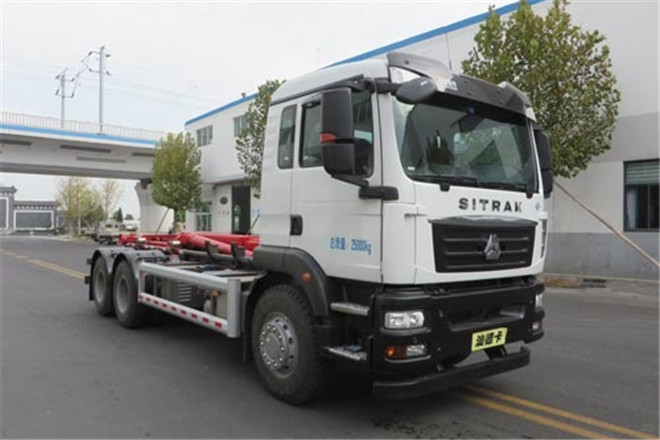

| Usage | Refuse Collector | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB18285-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8350mm | ||
| Width | 2515mm | ||
| Height | 3105mm | ||
| Curb Weight | 12180kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | ZZ5256XXYN504GF1CL | ||
| Front/Rear Overhang | 1450/1250mm | ||
| Number of Leaf Springs | 3/4,3/5,3/10,11/10,3/-/- | ||
| Number of Axles | 3 | ||
| Wheelbase | 4275+1400,4300+1350,4575+1400,4600+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1998,2015,2035mm | ||
| Rear Wheel Track | 1850/1850mm | ||
| Approaching/Departuring Angle | 16/21° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/80R22.5 18PR/315/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MT07.29-60 | China National Heavy Duty Truck Group Co., Ltd. | 216kW | 6870ml |
