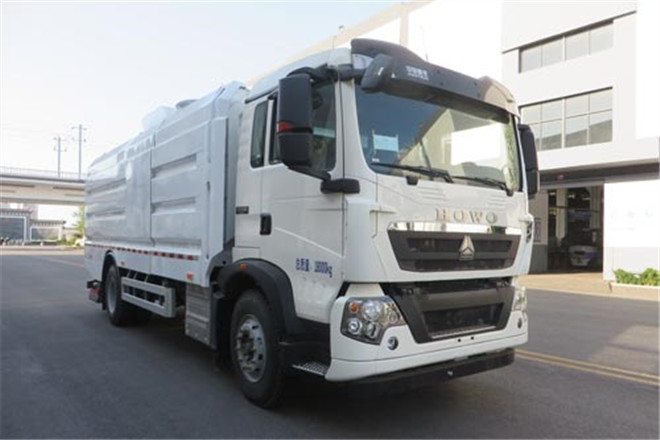

Yantai Haide CHD5180TWQZQE6 Road Pollution Remover

Basic Information
Usage	Road Maintenance Vehicle
Fuel Type	Diesel
Emission Standard	GB3847-2005,GB17691-2018 national Ⅵ emission standards
Length	9000mm
Width	2550mm
Height	3320mm
Curb Weight	14740kg
Gross Weight	18000kg
Seats	2,3
Max Speed	101km/h
Chassis
Chassis Model	ZZ1187N501GF1
Front/Rear Overhang	1430/2570mm
Number of Leaf Springs	11/9+8,3/9+8,3/3+2,2/3+2,3/-,2/-,7/7+6,7/7+3,3/7+6,3/7+3,2/3
Number of Axles	2
Wheelbase	3800,4200,4500,4700,4800,4900,5000,5200,6050mm
Axle Load	6500/11500kg
Front Wheel Track	1950,2035mm
Rear Wheel Track	1848,1860mm
Approaching/Departuring Angle	19/8°
Tire
Number of Tires	6
Tire	295/80R22.5,12R22.5,11.00R20,10.00R20
Engine
Model	Brand	Power	Displacement
MC07.27-60	China National Heavy Duty Truck Group Co., Ltd.	202kW	6870ml
MC07.31-60	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07.34-60	China National Heavy Duty Truck Group Co., Ltd.	251kW	6870ml
MC07.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	6870ml
MC07H.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	7360ml
MC07H.35-60	China National Heavy Duty Truck Group Co., Ltd.	257kW	7360ml
MC07H.29-60	China National Heavy Duty Truck Group Co., Ltd.	213kW	7360ml
WP8.350E61	Weichai Power Co., Ltd.	257kW	7800ml
WP9H350E62	Weichai Power Co., Ltd.	257kW	8800ml
