| Basic Information | |||

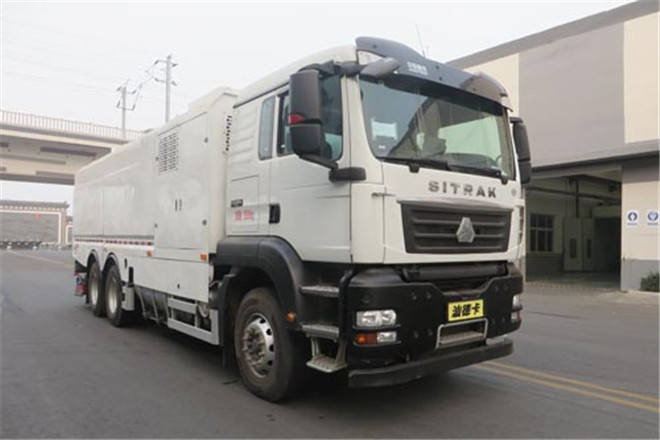

| Usage | Road Maintenance Vehicle | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 10250mm | ||
| Width | 2540mm | ||
| Height | 3355mm | ||
| Curb Weight | 18900kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | ZZ1256V504MF1CL | ||
| Front/Rear Overhang | 1492/2458mm | ||
| Number of Leaf Springs | 3/5,4/5,10/12,3/-/-,-/-/- | ||
| Number of Axles | 3 | ||
| Wheelbase | 4300+1400,4325+1350,4600+1400,4625+1350,4900+1400,4925+1350,5100+1400,5125+1350,5500+1400,5525+1350,5800+1400,5825+1350,6000+1400,6025+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2022,2041mm | ||
| Rear Wheel Track | 1830/1830mm | ||
| Approaching/Departuring Angle | 19/9° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,12.00R20 16PR,315/80R22.5 18PR/315/80R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MT13.40-60 | China National Heavy Duty Truck Group Co., Ltd. | 297kW | 12419ml |
| MT13.44-60 | China National Heavy Duty Truck Group Co., Ltd. | 327kW | 12419ml |
