| Basic Information | |||

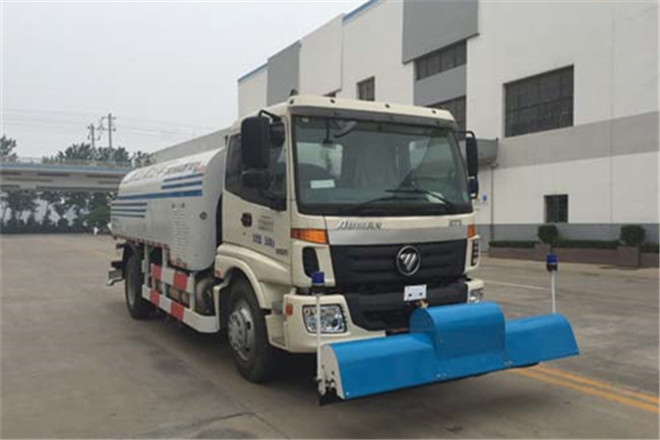

| Usage | Street Sprinkler | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8975,8240mm | ||
| Width | 2480mm | ||
| Height | 3085mm | ||
| Curb Weight | 8960kg | ||
| Gross Weight | 15600kg | ||
| Seats | 3,2 | ||
| Max Speed | 85km/h | ||
| Chassis | |||
| Chassis Model | BJ5163XXY-XQ | ||
| Front/Rear Overhang | 2100/2375,1365/2375mm | ||
| Number of Leaf Springs | 10/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500mm | ||
| Axle Load | 5600/10000kg | ||
| Front Wheel Track | 1883mm | ||
| Rear Wheel Track | 1847,1865mm | ||
| Approaching/Departuring Angle | 11/12,22/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10.00-20 18PR,10.00-20 16PR,10.00R20 18PR,10.00R20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6J225N-52 | Guangxi Yuchai Machinery Co., Ltd. | 166kW | 6494ml |
