| Basic Information | |||

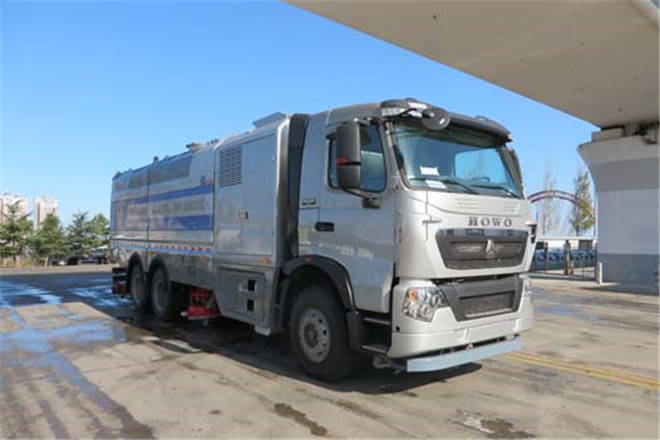

| Usage | Road Maintenance Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10100mm | ||
| Width | 2550mm | ||
| Height | 3295mm | ||
| Curb Weight | 19240kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 101km/h | ||
| Chassis | |||
| Chassis Model | ZZ1257N464ME1 | ||
| Front/Rear Overhang | 1500/2300mm | ||
| Number of Leaf Springs | 10/12,4/5,4/-,10/- | ||
| Number of Axles | 3 | ||
| Wheelbase | 4300+1400,4325+1350,4600+1400,4625+1350,4900+1400,4925+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2022,2041mm | ||
| Rear Wheel Track | 1830/1830mm | ||
| Approaching/Departuring Angle | 16/6° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 315/80R22.5 18PR/315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,11.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MC11.32-50 | China National Heavy Duty Truck Group Co., Ltd. | 238kW | 10518ml |
| MC11.36-50 | China National Heavy Duty Truck Group Co., Ltd. | 268kW | 10518ml |
| MC11.40-50 | China National Heavy Duty Truck Group Co., Ltd. | 297kW | 10518ml |
| MC11.44-50 | China National Heavy Duty Truck Group Co., Ltd. | 327kW | 10518ml |
| MC11.40-52 | China National Heavy Duty Truck Group Co., Ltd. | 297kW | 10518ml |
| MC11.44-52 | China National Heavy Duty Truck Group Co., Ltd. | 327kW | 10518ml |
