| Basic Information | |||

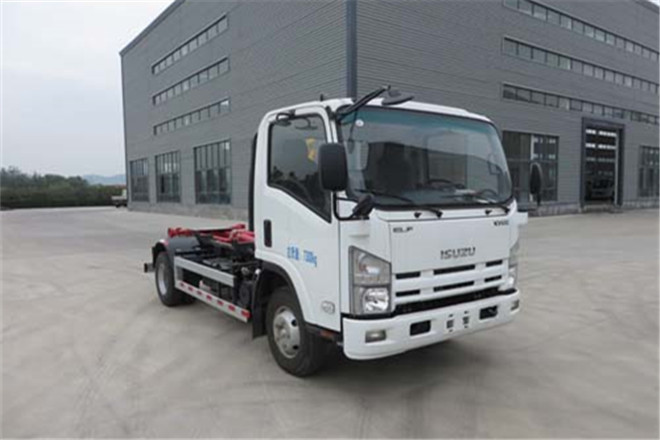

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5520mm | ||
| Width | 1995mm | ||
| Height | 2260mm | ||
| Curb Weight | 3260kg | ||
| Gross Weight | 7300kg | ||
| Seats | 3 | ||
| Max Speed | 110km/h | ||
| Chassis | |||
| Chassis Model | QL1071A5HAY | ||
| Front/Rear Overhang | 1110/1050mm | ||
| Number of Leaf Springs | 3/3+2,8/6+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 2580/4720kg | ||
| Front Wheel Track | 1685mm | ||
| Rear Wheel Track | 1525mm | ||
| Approaching/Departuring Angle | 20/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4KH1CN5HS | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 96kW | 2999ml |
| 4KH1-TCG51 | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 88kW | 2999ml |
| 4KH1CN5HD | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 96kW | 2999ml |
