| Basic Information | |||

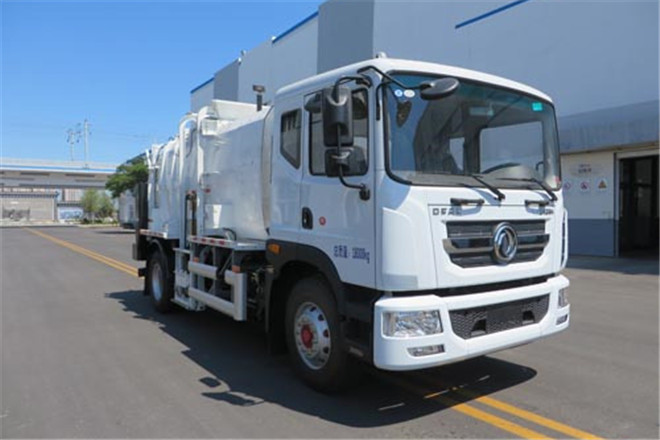

| Usage | Refuse Collector | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 7625mm | ||
| Width | 2540mm | ||
| Height | 3180mm | ||
| Curb Weight | 8700kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | EQ1185L9NDH | ||
| Front/Rear Overhang | 1260/1865mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500,5300,5600mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1923,1931mm | ||
| Rear Wheel Track | 1865mm | ||
| Approaching/Departuring Angle | 20/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80R22.5,10.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YCA07220N-60 | Guangxi Yuchai Machinery Co., Ltd. | 162kW | 6871ml |
