| Basic Information | |||

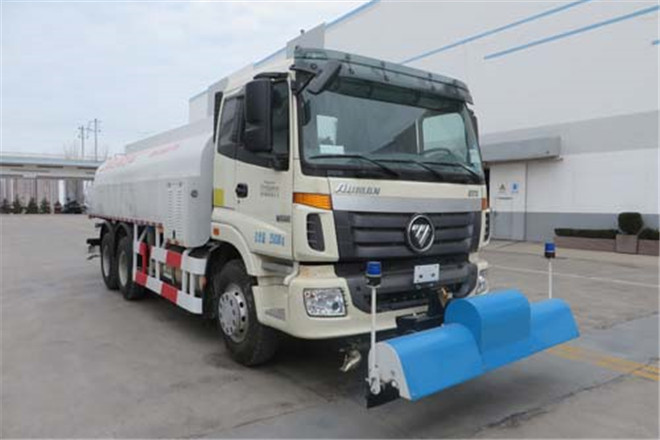

| Usage | Street Sprinkler | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10705,9862mm | ||
| Width | 2495mm | ||
| Height | 3135mm | ||
| Curb Weight | 12880kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1253VMPCE-XA | ||
| Front/Rear Overhang | 2375/2680,1532/2680mm | ||
| Number of Leaf Springs | 9/12 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4300+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2010mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 10/16,19/16° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00-20 18PR,11.00R20 18PR,12.00-20 16PR,12.00-20 18PR,12.00R20 16PR, | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP10NG336E50 | Weichai West Port New Energy Power Co., Ltd. | 247kW | 9726ml |
