| Basic Information | |||

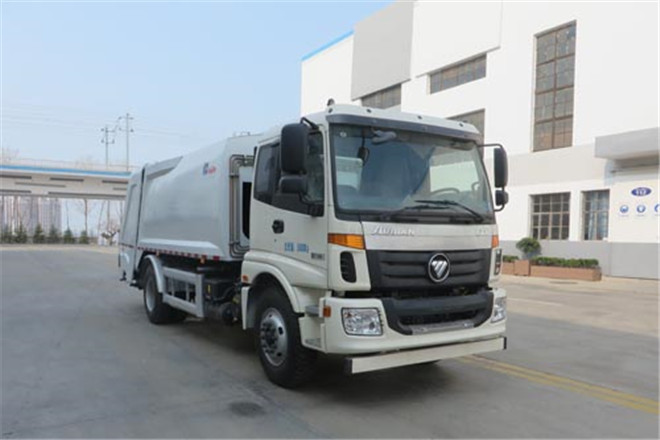

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8785mm | ||
| Width | 2490mm | ||
| Height | 2925,3475mm | ||
| Curb Weight | 10900kg | ||
| Gross Weight | 16000kg | ||
| Seats | 2,3 | ||
| Max Speed | 85km/h | ||
| Chassis | |||
| Chassis Model | BJ5163XXY-XP | ||
| Front/Rear Overhang | 1365/2920mm | ||
| Number of Leaf Springs | 10/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500,4700mm | ||
| Axle Load | 6000/10000kg | ||
| Front Wheel Track | 1883mm | ||
| Rear Wheel Track | 1847,1865mm | ||
| Approaching/Departuring Angle | 18/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00-20 18PR,10.00-20 16PR,10.00R20 18PR,10.00R20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd. | 155kW | 6700ml |
| ISD190 50 | Dongfeng Cummins Engine Co., Ltd. | 144kW | 6700ml |
| ISB190 50 | Dongfeng Cummins Engine Co., Ltd. | 140kW | 5900ml |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd. | 155kW | 5900ml |
