| Basic Information | |||

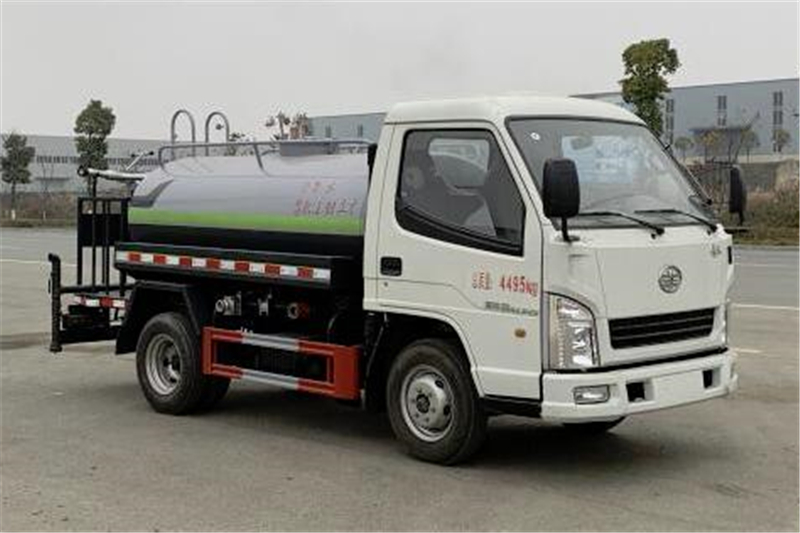

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5050,5250,5380mm | ||
| Width | 1700,1800mm | ||
| Height | 2150mm | ||
| Curb Weight | 2370kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 82km/h | ||
| Chassis | |||
| Chassis Model | CA1040K3LE5-1 | ||
| Front/Rear Overhang | 1090/1360,1090/1560,1090/1690mm | ||
| Number of Leaf Springs | 4/5+2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2400,2600mm | ||
| Axle Load | 1650/2845kg | ||
| Front Wheel Track | 1385mm | ||
| Rear Wheel Track | 1287,1380mm | ||
| Approaching/Departuring Angle | 22/16° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.00-15LT 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4DW93-78E5 | FAW Jiefang Automobile Wuxi Diesel Engine Co., Ltd. | 59kW | 2540ml |
