| Basic Information | |||

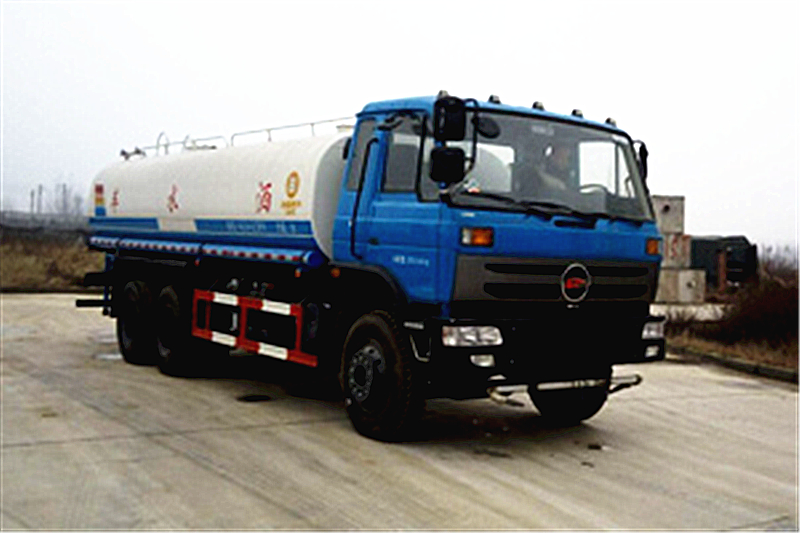

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9715,9915,10315,11165,11865mm | ||
| Width | 2500mm | ||
| Height | 3110,3440,3600mm | ||
| Curb Weight | 9050kg | ||
| Gross Weight | 25000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HQG1250GD5 | ||
| Front/Rear Overhang | 1450/2765,1250/2965,1450/2765,1250/2965,1450/2915,1250/3115,1450/2715,1250//2915,1450//3015,1250/3215,1450/3265,1250/3465mm | ||
| Number of Leaf Springs | 9/10 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4150+1350,4350+1350,4600+1350,4800+1350,5350+1350,5800+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2040,1940mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 17/21,19/20,17/21,19/20,17/20,19/18,17/22,19/20,17/19,19/17,17/17,19/16° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00-20 18PR,11.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP6.220E50 | Weichai Deutz Engine Co., Ltd. | 162kW | 6750ml |
| YC6JA220-50 | Guangxi Yuchai Machinery Co., Ltd. | 162kW | 6870ml |
| YC6A270-50 | Guangxi Yuchai Machinery Co., Ltd. | 199kW | 7520ml |
| WP7.270E51 | Weichai Power Co., Ltd. | 199kW | 7470ml |
