| Basic Information | |||

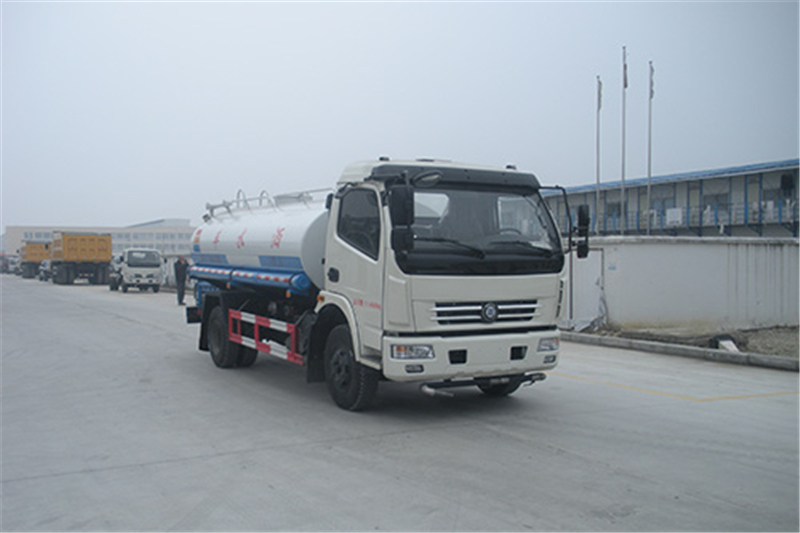

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 6650,7100mm | ||
| Width | 2300mm | ||
| Height | 2700mm | ||
| Curb Weight | 4360kg | ||
| Gross Weight | 11490kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HQG1110GD5 | ||
| Front/Rear Overhang | 1210/2140,1210/2290,1210/2090,1145/2205,1145/2355,1145/2155mm | ||
| Number of Leaf Springs | 11/9+7,8/10+7,8/11+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300,3600,3800mm | ||
| Axle Load | 4820/6670kg | ||
| Front Wheel Track | 1835,1750mm | ||
| Rear Wheel Track | 1640,1586mm | ||
| Approaching/Departuring Angle | 24/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25-20 16PR,8.25R20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4FA130-50 | Guangxi Yuchai Machinery Co., Ltd. | 95kW | 2982ml |
| WP4.1Q130E50 | Weichai Power Yangzhou Diesel Engine Co., Ltd. | 97kW | 4088ml |
| CY4BK251 | Dongfeng Chaoyang Diesel Co., Ltd. | 96kW | 3856ml |
