| Basic Information | |||

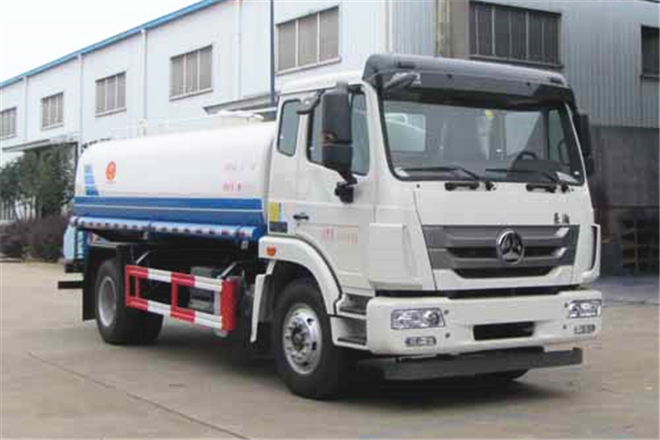

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8400mm | ||
| Width | 2480mm | ||
| Height | 2850mm | ||
| Curb Weight | 6655kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3,2 | ||
| Max Speed | 102km/h | ||
| Chassis | |||
| Chassis Model | ZZ1165G5113E1B | ||
| Front/Rear Overhang | 1350/2550mm | ||
| Number of Leaf Springs | 4/-,4/2+-,4/5,4/9+8,11/-,11/2+-,11/9+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500,4700,5100mm | ||
| Axle Load | 5500/10500kg | ||
| Front Wheel Track | 1830,1925,2020,1950,1980mm | ||
| Rear Wheel Track | 1800,1850mm | ||
| Approaching/Departuring Angle | 20/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20,10.00R20,10R22.5,275/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MC05.16-50 | China National Heavy Duty Truck Group Co., Ltd. | 118kW | 4580ml |
| MC05.18-50 | China National Heavy Duty Truck Group Co., Ltd. | 132kW | 4580ml |
| MC05.21-50 | China National Heavy Duty Truck Group Co., Ltd. | 151kW | 4580ml |
