| Basic Information | |||

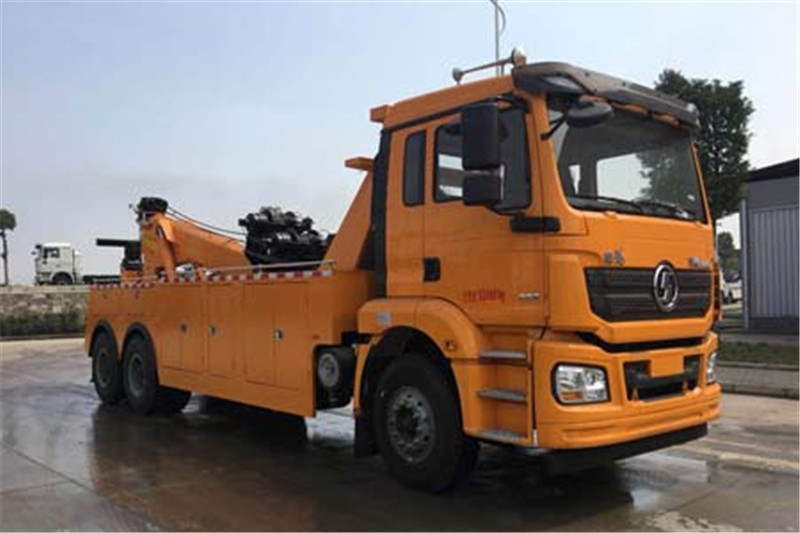

| Usage | Road-block Removal Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10500mm | ||
| Width | 2550mm | ||
| Height | 3300mm | ||
| Curb Weight | 20650kg | ||
| Gross Weight | 32000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | SX5320TXJMB4 | ||
| Front/Rear Overhang | 1525/2000mm | ||
| Number of Leaf Springs | 10/12 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4375+1400,4575+1400,4975+1400,5575+1400,3775+1400mm | ||
| Axle Load | 7000/12500/12500kg | ||
| Front Wheel Track | 2011,2036mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 16/10° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20,12.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP10.310E53 | Weichai Power Co., Ltd. | 228kW | 9726ml |
| WP10.336E53 | Weichai Power Co., Ltd. | 247kW | 9726ml |
| WP12.375E50 | Weichai Power Co., Ltd. | 276kW | 11596ml |
