| Basic Information | |||

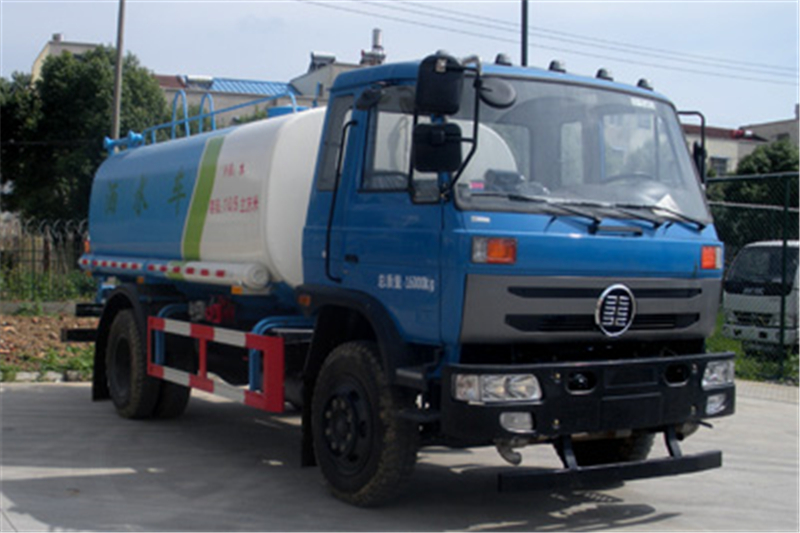

| Usage | Street Sprinkler | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7900,8500mm | ||
| Width | 2500mm | ||
| Height | 3200mm | ||
| Curb Weight | 5805kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HQG1163GD5 | ||
| Front/Rear Overhang | 1250/2700,1450/2500,1250/2750,1450/2550mm | ||
| Number of Leaf Springs | 9/10+8,10/11+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3600,3800,3950,4200,4500,4800,5200,5600mm | ||
| Axle Load | 5500/10500kg | ||
| Front Wheel Track | 1940,1900,1810,1710mm | ||
| Rear Wheel Track | 1860,1800,1800,1750mm | ||
| Approaching/Departuring Angle | 19/14,17/16° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10.00R20 14PR,10.00R20 16PR,10.00-20 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC4S140-50 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 3767ml |
| YC6JA180-50 | Guangxi Yuchai Machinery Co., Ltd. | 132kW | 6870ml |
| WP6.180E50 | Weifang Weichai Deutz Diesel Engine Co., Ltd. | 132kW | 6750ml |
| ISB170 50 | Dongfeng Cummins Engine Co., Ltd. | 125kW | 5900ml |
| WP3.7Q140E50 | Weichai Power Yangzhou Diesel Engine Co., Ltd. | 103kW | 3660ml |
