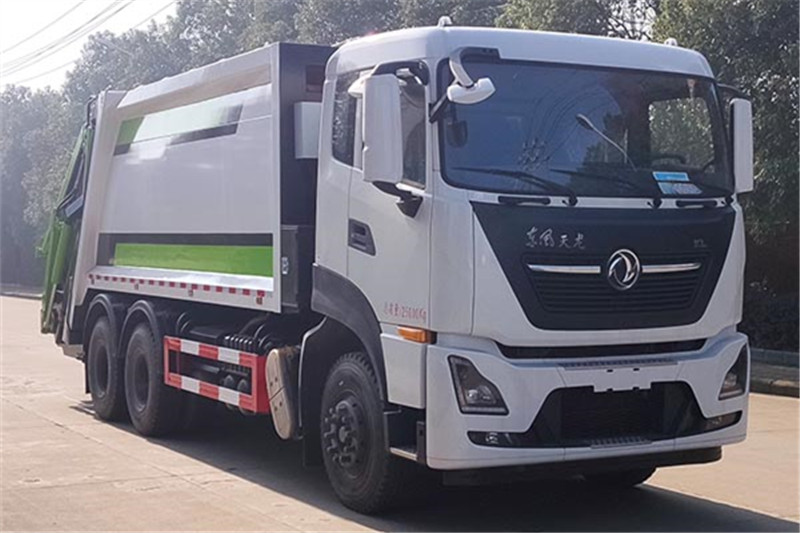

Hubei Dali DLQ5183ZYSLZ6 Compression Refuse Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	8830,9030,9230,9430mm
Width	2550mm
Height	3300mm
Curb Weight	10645kg
Gross Weight	18000kg
Seats	2,3
Max Speed	102km/h
Chassis
Chassis Model	ZZ1185K5613F1
Front/Rear Overhang	1550/2580mm
Number of Leaf Springs	-/-,2/-,2/4,3/-,3/4,3/5,3/9+6,4/-,4/5,4/9+6,9/9+6,-/2+-,2/2+-,3/2+-,4/2+-,7/7+3
Number of Axles	2
Wheelbase	3800,4200,4500,4700,4900,5100,5300,5600,6000,6500,7100mm
Axle Load	6500/11500kg
Front Wheel Track	1956,2022,2058mm
Rear Wheel Track	1800,1830,1860mm
Approaching/Departuring Angle	17/12°
Tire
Number of Tires	6
Tire	10.00R20 18PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR,295/60R22.5 18PR,305/60R22.5 18PR,315/60R22.5 18PR,275/80R22.5 18PR
Engine
Model	Brand	Power	Displacement
WP4.6NQ220E61	Weichai Power Co., Ltd.	162kW	4580ml
WP6H245E61	Weichai Power Co., Ltd.	180kW	6220ml
WP6H270E61	Weichai Power Co., Ltd.	199kW	6220ml
MC05H.20-60	China National Heavy Duty Truck Group Co., Ltd.	147kW	4910ml
MC05H.23-60	China National Heavy Duty Truck Group Co., Ltd.	166kW	4910ml
MC05H.25-60	China National Heavy Duty Truck Group Co., Ltd.	180kW	4910ml
MC07.25-60	China National Heavy Duty Truck Group Co., Ltd.	188kW	6870ml
MC07.27-60	China National Heavy Duty Truck Group Co., Ltd.	202kW	6870ml
MC07.29-60	China National Heavy Duty Truck Group Co., Ltd.	213kW	6870ml
MC07H.29-60	China National Heavy Duty Truck Group Co., Ltd.	213kW	7360ml
