| Basic Information | |||

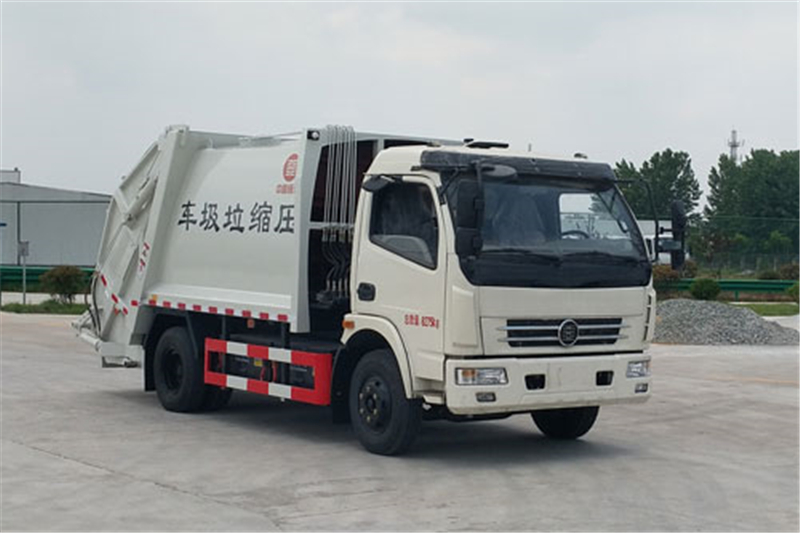

| Usage | Refuse Collector | ||
| Fuel Type | Electric vehicle | ||
| Emission Standard | - | ||
| Length | 6360,6560,6720mm | ||
| Width | 2220mm | ||
| Height | 2640mm | ||
| Curb Weight | 6110kg | ||
| Gross Weight | 8275kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | HQG1086EV1 | ||
| Front/Rear Overhang | 1125/1935,1125/2135,1125/1795mm | ||
| Number of Leaf Springs | 8/10+7 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300,3600,3800mm | ||
| Axle Load | 3000/5275kg | ||
| Front Wheel Track | 1726,1770mm | ||
| Rear Wheel Track | 1545,1586mm | ||
| Approaching/Departuring Angle | 23/11,23/6,23/18° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-16LT 14PR,7.50R16LT 14PR | ||
| Electrical Machinery | |||
| Model | Brand | Max Power | |
| M135B | Shanghai Xinguo Power Technology Co., Ltd. | 150kW | |
