| Basic Information | |||

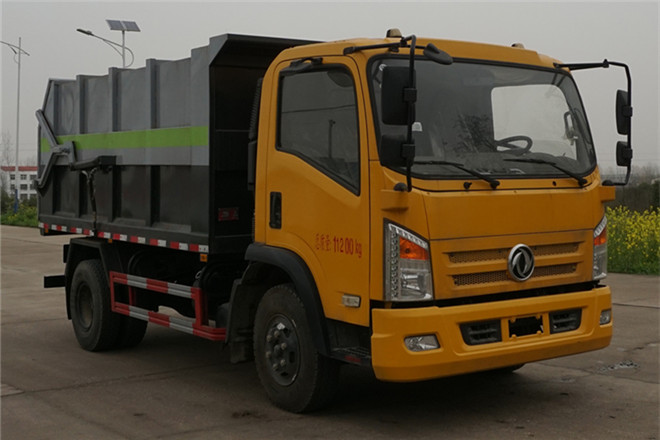

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2018 national Ⅵ emission standards | ||
| Length | 5980,6280mm | ||
| Width | 2480mm | ||
| Height | 2650,2750mm | ||
| Curb Weight | 5500kg | ||
| Gross Weight | 11200kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | EQ1110S8EDF | ||
| Front/Rear Overhang | 1148/1524,1280/1392,1148/1532,1280/1400mm | ||
| Number of Leaf Springs | 12/12+9,8/10+7,3/6+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3308,3400,3600,3700,3800,2800,4200,4400mm | ||
| Axle Load | 4000/7200kg | ||
| Front Wheel Track | 1825,1769,1516,1546mm | ||
| Rear Wheel Track | 1810,1654,1494,1535mm | ||
| Approaching/Departuring Angle | 24/19° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R16,8.25R16LT 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CA4DB1-13E6 | China FAW Group Co., Ltd. | 95kW | 2207ml |
| D30TCIF1 | Kunming Yunnei Power Co., Ltd. | 125kW | 2977ml |
| YCS04180-68 | Guangxi Yuchai Machinery Co., Ltd. | 132kW | 4156ml |
| D20TCIF1 | Kunming Yunnei Power Co., Ltd | 93kW | 1999ml |
| NV30-C6D | Dongfeng Chaoyang Diesel Engine Co., Ltd. | 120kW | 2968ml |
| D25TCIF1 | Kunming Yunnei Power Co., Ltd | 110kW | 2499ml |
| D40TCIF1 | Kunming Yunnei Power Co., Ltd | 135kW | 4052ml |
| YCY24140-60 | Guangxi Yuchai Machinery Co., Ltd. | 103kW | 2360ml |
