| Basic Information | |||

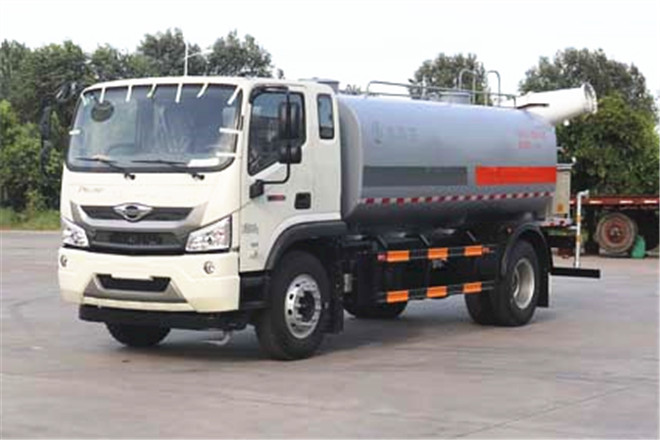

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 7910,8160mm | ||
| Width | 2400mm | ||
| Height | 3100mm | ||
| Curb Weight | 6450kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ1164VKPFA-01 | ||
| Front/Rear Overhang | 1260/2150,1260/2400mm | ||
| Number of Leaf Springs | 8/10+6,10/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500,4800,4300,3800mm | ||
| Axle Load | 5500/10500kg | ||
| Front Wheel Track | 1740,1760,1780mm | ||
| Rear Wheel Track | 1724mm | ||
| Approaching/Departuring Angle | 15/13,15/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP4.1NQ190E61 | Weichai Power Co., Ltd. | 140kW | 4088ml |
