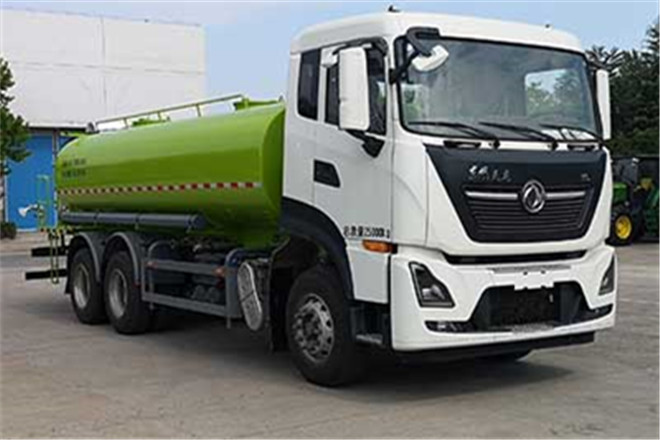

CIMC Linyu CLY5250GPSE6 Watering Lorry
| Basic Information |
| Usage |
Tree Sprinkling Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
10025,10045mm |
| Width |
2520mm |
| Height |
3190mm |
| Curb Weight |
11800kg |
| Gross Weight |
25000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFH1250D4 |
| Front/Rear Overhang |
1480/2845,1500/2845mm |
| Number of Leaf Springs |
3/10,3/4,9/10 |
| Number of Axles |
3 |
| Wheelbase |
4350+1350,5350+1350,5700+1350,4600+1350,4800+1350mm |
| Axle Load |
7000/18000(two axles)kg |
| Front Wheel Track |
2010,2040,2070mm |
| Rear Wheel Track |
1860/1860,1880/1880mm |
| Approaching/Departuring Angle |
16/° |
| Tire |
| Number of Tires |
10 |
| Tire |
295/80R22.5 18PR,11.00R20 18PR |
| Engine |
| Model |
D6.7NS6B290,DDi75E350-60,DDi75E300-60 |
| Power |
213,257,220kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Trucks Co., Ltd.;Dongfeng Trucks Co., Ltd. |
| Displacement |
6700,7500,7500ml |
