| Basic Information |
| Usage |

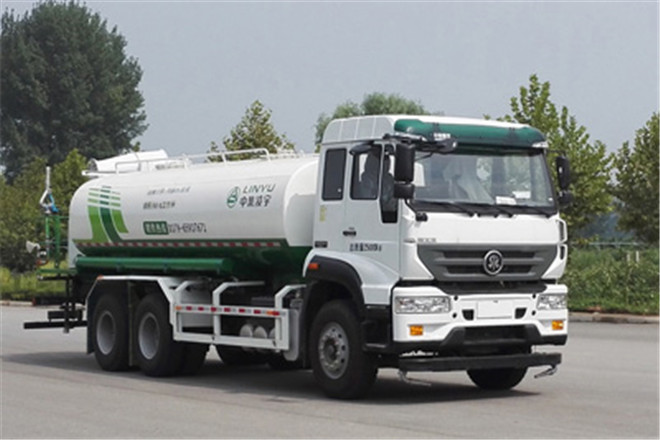

Tree Sprinkling Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
10200,9600mm |
| Width |
2500mm |
| Height |
3230,3000mm |
| Curb Weight |
11660kg |
| Gross Weight |
25000kg |
| Seats |
2,3 |
| Max Speed |
101km/h |
| Chassis |
| Chassis Model |
ZZ1251N464GE1 |
| Front/Rear Overhang |
1320/3180,1320/2580mm |
| Number of Leaf Springs |
3/5,3/10,11/10,11/12,3/-,11/-,3/4 |
| Number of Axles |
3 |
| Wheelbase |
4350+1350,4550+1350,5700+1350,3800+1350mm |
| Axle Load |
7000/18000(two axles)kg |
| Front Wheel Track |
2035mm |
| Rear Wheel Track |
1850/1850mm |
| Approaching/Departuring Angle |
13/24,13/26° |
| Tire |
| Number of Tires |
10 |
| Tire |
11.00-20,11.00R20,12R22.5,295/80R22.5 |
| Engine |
| Model |
MC07.28-50,MC07.31-50,D10.28-50,D10.31-50,MC07.24-50,MC07.28-52,MC07.31-52 |
| Power |
206,228,206,228,176,206,228kW |
| Brand |
China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd. |
| Displacement |
6870,6870,9726,9726,6870,6870,6870ml |
