| Basic Information | |||

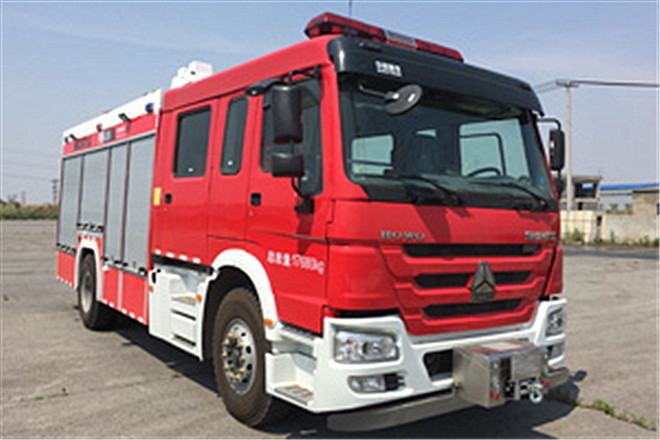

| Usage | Fire Extinguishing Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8870mm | ||
| Width | 2500mm | ||
| Height | 3460mm | ||
| Curb Weight | 13180kg | ||
| Gross Weight | 17680kg | ||
| Seats | 2+4 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | ZZ5207N4717E6 | ||
| Front/Rear Overhang | 1500/2280mm | ||
| Number of Leaf Springs | 4/5,4/9+6,10/9+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 4700,4100mm | ||
| Axle Load | 6560/11120kg | ||
| Front Wheel Track | 2022,2041mm | ||
| Rear Wheel Track | 1830mm | ||
| Approaching/Departuring Angle | 16/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 315/80R22.5,12.00R20,12.00-20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MC11.32-50 | China National Heavy Duty Truck Group Co., Ltd. | 238kW | 10518ml |
| MC11.36-50 | China National Heavy Duty Truck Group Co., Ltd. | 268kW | 10518ml |
