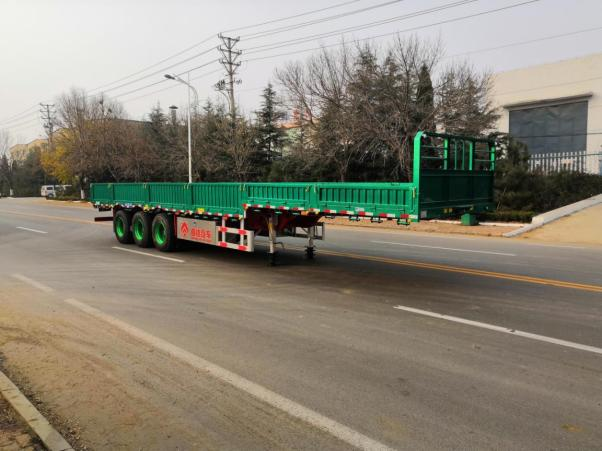

Shandong Shodailer Breast Board Transport Semi-Trailer

Shandong Shodailer Breast Board Transport Semi-Trailer
Shandong Shodailer Breast Board Transport Semi-Trailer
Views:0
Basic Information
Usage Semi-Trailer
Length 13000mm
Width 2550mm
Height 2700mm
Curb Weight 6000kg
Gross Weight 40000kg
Chassis
Front/Rear Overhang 2300mm
Number of Axles 3
Wheelbase 6700+1310+1310mm
Tire
Number of Tires 12
Tire 12R22.5 12PR
Carriage Size (mm) 12900*2460*600
Main Beam Material T700/AT BUYER REQUEST(SUCH AS Q235 #16)
Main Beam Middle Plate Thickness 5mm
Main Beam Upper Plate Thickness 8mm
Main Beam Lower Plate Thickness 10mm
Main Beam Height 490mm
Plate board 1.8mm
Side Beam 14#G Type
Side Material T700/AT BUYER REQUEST(SUCH AS Q235 #16)
Axles Type 13tons
Axles Brand Fuwa/BPW/FENBAO/TAINCHI/AT BUYER REQUEST
Tire Bran Chaoyang/Double Coin/Linglong/AT BUYER REQUEST
Rim Type/Material R22.5 Steel/Aluminium Alloy
Leaf Spring Type Suspension 90mm*13mm*10/Other
King Pin Type/Brand 50#/90# JOST/Other
Landing Gear Type/Brand 28tons Fuwa/Jost/Other
Tool Box 2m/Aluminium Alloy
Side Protection Aluminium Alloy
Brake System Dual Line Brake System
Brake Air Chamberr Four double and Two single Brake air chambe
ABS Kemi/WEIBOKE/AT BUYER REQUEST
Electrical system 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)Tail lamp with turn signal, brake light & reflector, side lamp etc.One set 6-core standard Cable.
Packing Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
Delivery way Transfer to Qingdao Port, and carry by ro-ro ship or bulk cargo ship or container, the freight cost depends on the volume,We will arrange the most cost-effective transportation mode
All trailers and trucks will be polished with wax before shipping.
