| Basic Information | |||

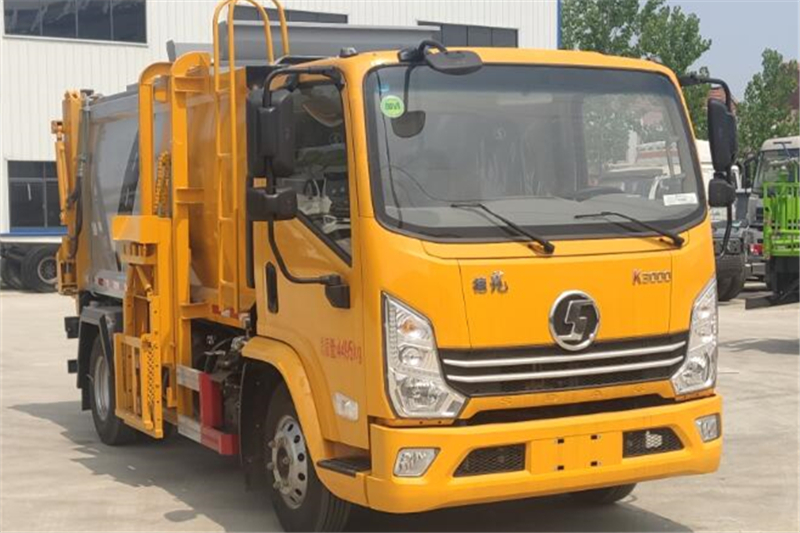

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5900mm | ||
| Width | 2200mm | ||
| Height | 2700mm | ||
| Curb Weight | 3865kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2,3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | YTQ1041KH331 | ||
| Front/Rear Overhang | 1130/1470mm | ||
| Number of Leaf Springs | 3/3+2,7/9+8,3/3+3,3/8+6,3/9+8,7/8+6,3/10+10,3/4+3,1/1+1,2/3+2,2/3+3,2/5+3,3/5+3,7/5+3,3/5+2,1/5+2,1/5+3,1/4+3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300,2800mm | ||
| Axle Load | 1610/2885kg | ||
| Front Wheel Track | 1614,1585,1701,1736,1575mm | ||
| Rear Wheel Track | 1551,1570,1795,1670,1700,1720,1435,1476mm | ||
| Approaching/Departuring Angle | 18/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00R16LT 8PR,7.50R16LT 6PR,6.50R16LT 12PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP2.3NQ130E61 | Weichai Power Co., Ltd. | 96kW | 2289ml |
| WP3NQ140E61 | Weichai Power Co., Ltd. | 103kW | 2970ml |
| WP3NQ160E61 | Weichai Power Co., Ltd. | 118kW | 2970ml |
| WP2.3NQ120E61 | Weichai Power Co., Ltd. | 88kW | 2289ml |
| D20TCIF12 | Kunming Yunnei Power Co., Ltd. | 90kW | 1999ml |
| D20TCIF13 | Kunming Yunnei Power Co., Ltd. | 85kW | 1999ml |
| WP2.5NQ160E61 | Weichai Power Co., Ltd. | 118kW | 2490ml |
| WP2.5NQ150E61 | Weichai Power Co., Ltd. | 110kW | 2490ml |
