| Basic Information | |||

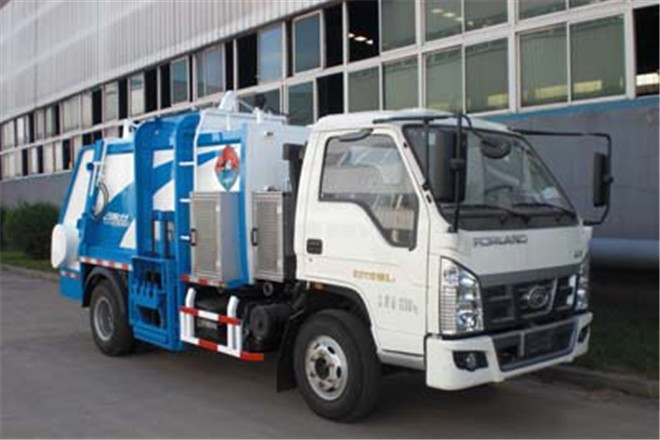

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 6050mm | ||
| Width | 2190mm | ||
| Height | 2660mm | ||
| Curb Weight | 5280kg | ||
| Gross Weight | 8280kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | BJ3085DEJEA-2 | ||
| Front/Rear Overhang | 1100/1590mm | ||
| Number of Leaf Springs | 10/9+6,8/12+9 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3360mm | ||
| Axle Load | 2810/5470kg | ||
| Front Wheel Track | 1555,1429,1640mm | ||
| Rear Wheel Track | 1530,1485,1650,1590mm | ||
| Approaching/Departuring Angle | 24/16.5° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.50-16,7.50R16,8.25-16 16PR,8.25R16 16PR,8.25-20 12PR,8.25R20 10PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| 4DX23-120E4 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | ||
| YZ4DA2-40 | Weichai Power Yangzhou Diesel Engine Co., Ltd. | ||
| YN38CRD2 | Kunming Yunnei Power Co., Ltd. | ||
| YN33CRD2 | Kunming Yunnei Power Co., Ltd. | ||
