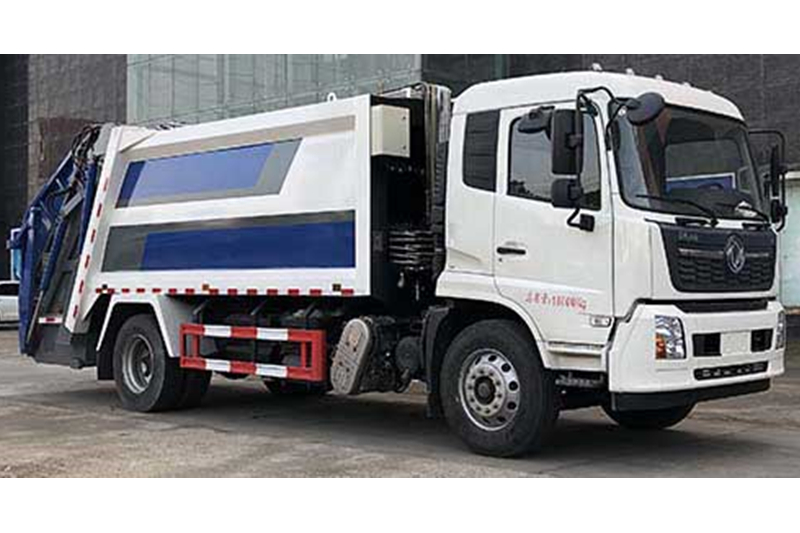

Hubei Dali DLQ5181ZYSLZ6 Compression Refuse Collector

Basic Information
Usage	Refuse Collector
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	8680,8710,8880,8910,9080,9110,9280,9310mm
Width	2550mm
Height	3300mm
Curb Weight	10845kg
Gross Weight	18000kg
Seats	2,3
Max Speed	89km/h
Chassis
Chassis Model	DFH1180EX8
Front/Rear Overhang	1400/2580,1430/2580mm
Number of Leaf Springs	7/9+6,8/10+8,8/9+6,11/10+8,3/10+8
Number of Axles	2
Wheelbase	3800,3950,4200,4500,4700,5000,5300,5800,5600,5100mm
Axle Load	6500/11500kg
Front Wheel Track	1876,1896,1920,1950,1914,1934,1980,2000,1815,1860mm
Rear Wheel Track	1820,1860,1800,1840mm
Approaching/Departuring Angle	19/10°
Tire
Number of Tires	6
Tire	10.00R20 18PR,275/80R22.5 18PR
Engine
Model	Brand	Power	Displacement
D4.5NS6B190	Domgfeng Cummins Engine Co., Ltd.	140kW	4500ml
D6.7NS6B230	Domgfeng Cummins Engine Co., Ltd.	169kW	6700ml
B6.2NS6B210	Domgfeng Cummins Engine Co., Ltd.	154kW	6200ml
D4.0NS6B185	Domgfeng Cummins Engine Co., Ltd.	136kW	4000ml
DDi50E220-60	Dongfeng Trucks Co., Ltd.	162kW	5000ml
B6.2NS6B230	Domgfeng Cummins Engine Co., Ltd.	169kW	6200ml
DDi50E190-60	Dongfeng Trucks Co., Ltd.	147kW	5000ml
D4.0NS6B195	Domgfeng Cummins Engine Co., Ltd.	143kW	4000ml
D6.7NS6B260	Domgfeng Cummins Engine Co., Ltd.	191kW	6700ml
D4.5NS6B220	Domgfeng Cummins Engine Co., Ltd.	162kW	4500ml
DDi47E210-60	Dongfeng Trucks Co., Ltd.	154kW	4750ml
