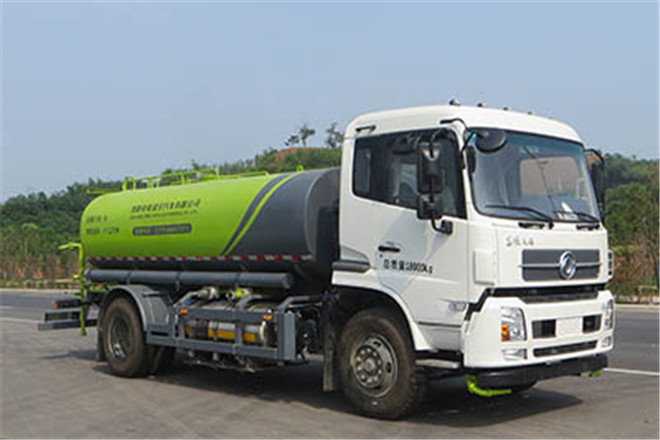

CIMC Linyu CLY5180GSSEQN5 Sprinkler

Basic Information
Usage	Aluminum Alloy Oil Tanker
Fuel Type	Natural gas
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB18285-2005,GB11340-2005
Length	8500mm
Width	2500mm
Height	2900mm
Curb Weight	8250kg
Gross Weight	18000kg
Seats	2,3
Max Speed	90km/h
Chassis
Chassis Model	EQ1180GD5NJ
Front/Rear Overhang	1430/2570,1430/2370mm
Number of Leaf Springs	8/10+8,9/11+8,3/4+3
Number of Axles	2
Wheelbase	3800,3950,4200,4500,4700,5100,5600,6500,7100,4950,5200mm
Axle Load	6500/11500kg
Front Wheel Track	1880,1930mm
Rear Wheel Track	1860mm
Approaching/Departuring Angle	18/12,18/13°
Tire
Number of Tires	6
Tire	10.00-20 18PR,10.00R20 18PR,11.00-20 16PR,11.00R20 18PR,295/80R22.5 18PR,315/80R22.5 16PR
Engine
Model	Brand	Power	Displacement
YC6J190N-52	Guangxi Yuchai Machinery Co., Ltd.	140kW	6494ml
YC6J210N-52	Guangxi Yuchai Machinery Co., Ltd.	155kW	6494ml
B6.7GE5 190	Hubei Hanyu Power Technology Co., Ltd.	140kW	6700ml
B6.7GE5 210	Hubei Hanyu Power Technology Co., Ltd.	155kW	6700ml
YC6G230N-50	Guangxi Yuchai Machinery Co., Ltd.	170kW	7800ml
YC6G260N-50	Guangxi Yuchai Machinery Co., Ltd.	191kW	7800ml
YC6L280N-52	Guangxi Yuchai Machinery Co., Ltd.	206kW	8424ml
B6.7GE5 255	Hubei Hanyu Power Technology Co., Ltd.	184kW	6700ml
