| Basic Information | |||

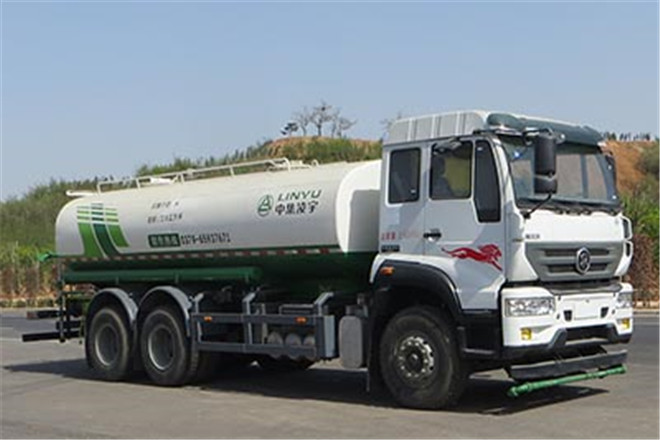

| Usage | Street Sprinkler | ||
| Fuel Type | Natural gas | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB18285-2005,GB11340-2005 | ||
| Length | 9600mm | ||
| Width | 2500mm | ||
| Height | 3000mm | ||
| Curb Weight | 11600kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2,3 | ||
| Max Speed | 101km/h | ||
| Chassis | |||
| Chassis Model | ZZ1251M464GE1L | ||
| Front/Rear Overhang | 1320/2580mm | ||
| Number of Leaf Springs | 3/4,3/5,11/10,11/12,3/-,11/- | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1350,4550+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 2035mm | ||
| Rear Wheel Track | 1850/1850mm | ||
| Approaching/Departuring Angle | 11/15° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 11.00R20,12R22.5,295/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| MT07.29-50 | China National Heavy Duty Truck Group Co., Ltd. | 216kW | 6870ml |
