| Basic Information | |||

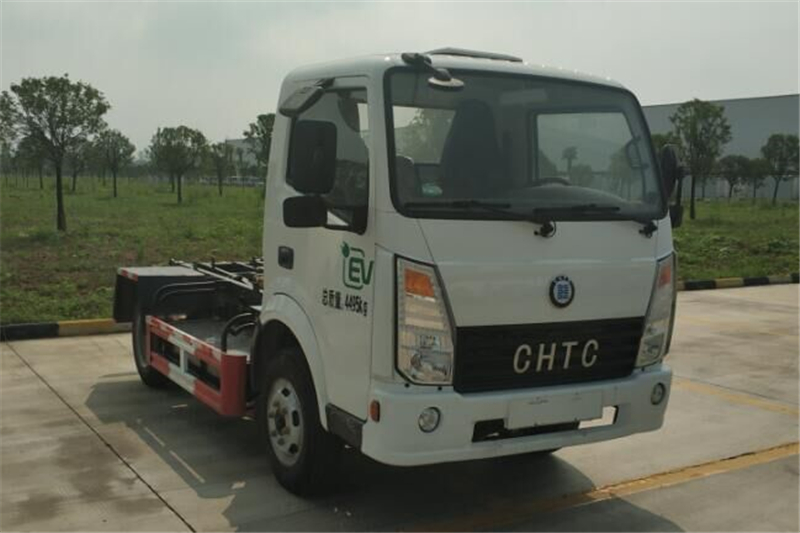

| Usage | Refuse Collector | ||
| Fuel Type | Electric vehicle | ||
| Length | 4650mm | ||
| Width | 1960mm | ||
| Height | 2230,2300,2360mm | ||
| Curb Weight | 2615kg | ||
| Gross Weight | 4495kg | ||
| Seats | 2 | ||
| Max Speed | 85km/h | ||
| Chassis | |||
| Chassis Model | HQG1040EV3 | ||
| Front/Rear Overhang | 1100/850mm | ||
| Number of Leaf Springs | 2/3,3/4 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2700mm | ||
| Axle Load | 1695/2800kg | ||
| Front Wheel Track | 1546mm | ||
| Rear Wheel Track | 1340mm | ||
| Approaching/Departuring Angle | 21/24° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50-16LT 12PR,6.50R16LT 12PR | ||
| Electrical Machinery | |||
| Model | Brand | Max Power | |
| M90B-S | Shanghai Xinguo Power Technology Co., Ltd. | 94kW | |
| TZ210XSTY535 | Wuhan Polytechnic New Source Power Co., Ltd. | 90kW | |
