| Basic Information | |||

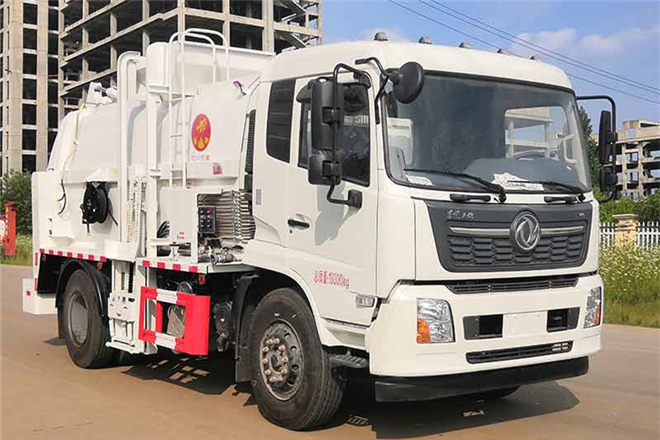

| Usage | Refuse Collector | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 7800,7770,7250,7220,7100,7070mm | ||
| Width | 2500,2550mm | ||
| Height | 3190,3260mm | ||
| Curb Weight | 9400kg | ||
| Gross Weight | 16000kg | ||
| Seats | 3,2 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFH1160EX8 | ||
| Front/Rear Overhang | 1430/1870,1400/1870mm | ||
| Number of Leaf Springs | 7/9+6,8/10+8,8/9+6,11/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,3950,4200,4500,4700,5000,5300,5800,5600mm | ||
| Axle Load | 5600/10400kg | ||
| Front Wheel Track | 1876,1896,1920,1950,1914,1934,1980,2000,1815,1860mm | ||
| Rear Wheel Track | 1820,1860,1800mm | ||
| Approaching/Departuring Angle | 17/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10.00R20 18PR,275/80R22.5 18PR,10R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DDi50E190-60 | Dongfeng Commercial Vehicle Co., Ltd. | 147kW | 5000ml |
| D4.5NS6B190 | Dongfeng Cummins Engine Co., Ltd. | 140kW | 4500ml |
| D6.7NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6700ml |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| B6.2NS6B230 | Dongfeng Cummins Engine Co., Ltd. | 169kW | 6200ml |
| DDi50E220-60 | Dongfeng Commercial Vehicle Co., Ltd. | 162kW | 5000ml |
| D4.0NS6B185 | Dongfeng Cummins Engine Co., Ltd. | 136kW | 4000ml |
