| Basic Information |
| Usage |

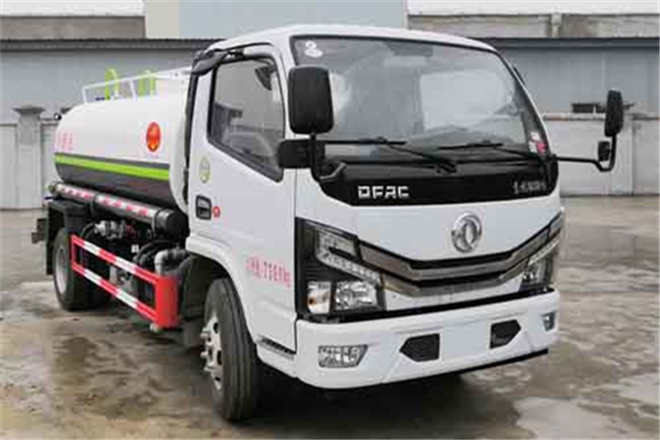

Street Sprinkler |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
5998mm |
| Width |
2000mm |
| Height |
2400mm |
| Curb Weight |
3320kg |
| Gross Weight |
7360kg |
| Seats |
2 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
EQ1075SJ3CDF |
| Front/Rear Overhang |
1055/1635mm |
| Number of Leaf Springs |
6/6+5,3/3+3,5/4+3,6/4+3,6/5+2,6/3+3,3/6+5,3/3+2,2/2 |
| Number of Axles |
2 |
| Wheelbase |
2700,2950,3308mm |
| Axle Load |
2640/4720kg |
| Front Wheel Track |
1525,1519,1503,1613mm |
| Rear Wheel Track |
1498,1516,1586,1670,1650mm |
| Approaching/Departuring Angle |
27.7/14° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.00R16,7.00R16LT,7.00R16LT 14PR |
| Engine |
| Model |
CY4BK461,CA4DB1-11E6,CY4BK161,D20TCIF1,Q28-130E60,H20-120E60,CA4DB1-13E6,YCY24140-60,D20TCIF11,Q23-115E60,ZD30D16-6N,M9T-600 |
| Power |
95,81,105,93,96,90,95,103,93,85,120,105kW |
| Brand |
Dongfeng Chaoyang Diesel Co., Ltd.; China FAW Group Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Kunming Yunnei Power Co., Ltd.;Anhui Quanchai Power Co., Ltd.; Anhui Quanchai Power Co., Ltd.;China FAW Group Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Anhui Quanchai Power Co., Ltd.; Dongfeng Light Engine Co., Ltd.;Dongfeng Light Engine Co., Ltd. |
| Displacement |
3707,2207,3856,1999,2800,2000,2207,2360,1999,2300,2953,2298ml |
