| Basic Information |
| Usage |

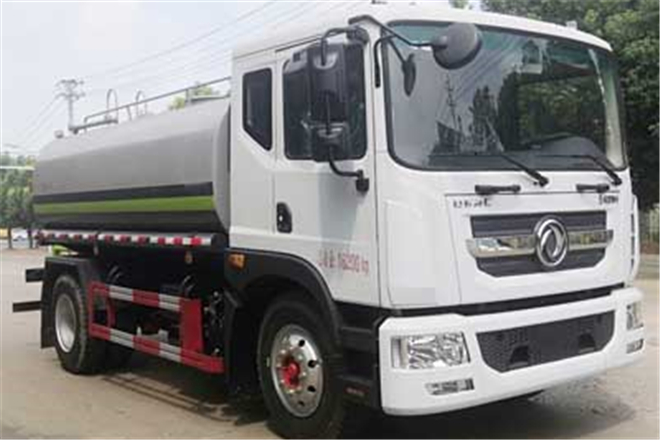

Street Sprinkler |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
7500,7760mm |
| Width |
2500,2530mm |
| Height |
3200,3360mm |
| Curb Weight |
6110kg |
| Gross Weight |
16200kg |
| Seats |
3,2 |
| Max Speed |
105km/h |
| Chassis |
| Chassis Model |
EQ1165LJ9CDE |
| Front/Rear Overhang |
1260/2290,1260/2550mm |
| Number of Leaf Springs |
8/10+7 |
| Number of Axles |
2 |
| Wheelbase |
3950,4500,4700,5000,5300,5600mm |
| Axle Load |
5600/10600kg |
| Front Wheel Track |
1862,1933,1949mm |
| Rear Wheel Track |
1806,1865mm |
| Approaching/Departuring Angle |
19/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20 16PR,10.00R20 18PR,295/80R22.5 18PR,275/80R22.5 18PR |
| Engine |
| Model |
B6.2NS6B210,D4.5NS6B220,D4.0NS6B195,YCS04200-68,CY4SK761,B6.2NS6B230,YCY30165-60 |
| Power |
154,162,143,147,145,169,121kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd. |
| Displacement |
6200,4500,4000,4156,4087,6200,2970ml |
