| Basic Information |
| Usage |

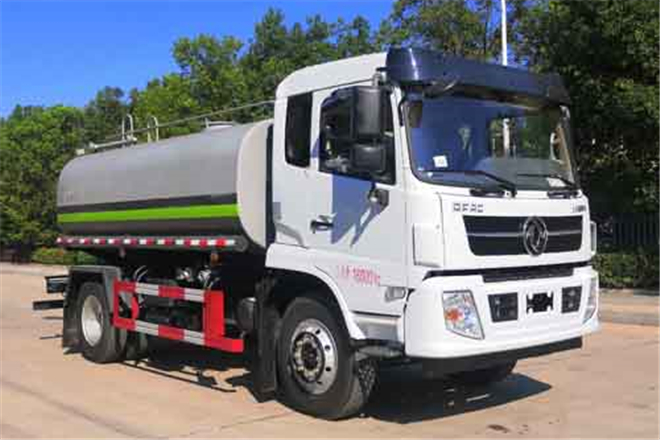

Street Sprinkler |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
7500,7650mm |
| Width |
2480,2530mm |
| Height |
3200,3360mm |
| Curb Weight |
5920kg |
| Gross Weight |
16000kg |
| Seats |
3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
EQ1165S8EDF |
| Front/Rear Overhang |
1148/2402,1280/2270,1455/2095,1148/2552,1280/2420,1455/2245mm |
| Number of Leaf Springs |
12/12+9,8/10+7 |
| Number of Axles |
2 |
| Wheelbase |
3308,3400,3600,3700,3800,3950,4050,3650,4500,4700,5200,5600mm |
| Axle Load |
5600/10400kg |
| Front Wheel Track |
1745,1805,1825mm |
| Rear Wheel Track |
1630,1650,1800mm |
| Approaching/Departuring Angle |
20/12,20/13° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20 |
| Engine |
| Model |
D30TCIF1,D45TCIF1,NV30-C6D,YCS04180-68,D40TCIF1,CA4DD2-18E6-30 |
| Power |
125,162,120,132,135,132kW |
| Brand |
Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Kunming Yunnei Power Co., Ltd.;China FAW Group Co., Ltd. |
| Displacement |
2977,4461,2968,4156,4052,3230ml |
