| Basic Information |
| Usage |

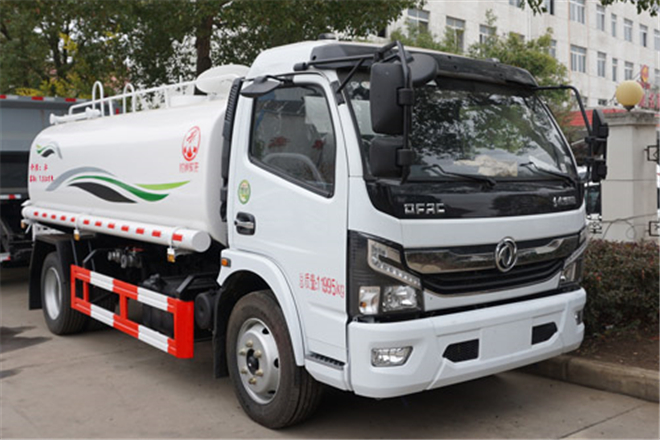

Street Sprinkler |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
7150mm |
| Width |
2250,2360mm |
| Height |
2700mm |
| Curb Weight |
4650kg |
| Gross Weight |
11995kg |
| Seats |
3 |
| Max Speed |
103km/h |
| Chassis |
| Chassis Model |
EQ1125SJ8CDC |
| Front/Rear Overhang |
1130/2220mm |
| Number of Leaf Springs |
8/10+7,12/12+9 |
| Number of Axles |
2 |
| Wheelbase |
3800,3950,4050,4100,4400,3600mm |
| Axle Load |
4350/7645kg |
| Front Wheel Track |
1745,1802,1820,1842,1765,1890mm |
| Rear Wheel Track |
1630,1650,1800,1720mm |
| Approaching/Departuring Angle |
21/11° |
| Tire |
| Number of Tires |
6 |
| Tire |
245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR |
| Engine |
| Model |
YCY30165-60,Q28-130E60,D30TCIF1,CY4SK361,NV30-C6D,ZD30D16-6N,D25TCIF1,YCY24140-60,CY4SK161,CY4SK261,NV30-C6G,D4.0NS6B185,CA4DD2-18E6-30,YCS04190-68,D40TCIF1,D4.0NS6B195,D4.0NS6B170,CY4BK261,H30-165E60,D45TCIF1,D4.0NS6B160,NV30-C6C,Q28-156E60 |
| Power |
121,96,125,125,120,120,110,103,135,125,115,136,132,140,135,143,125,100,120,162,118,120,115kW |
| Brand |
Guangxi Yuchai Machinery Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Light Engine Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;China FAW Group Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.; Dongfeng Cummins Engine Co., Ltd.; Dongfeng Chaoyang Diesel Co., Ltd.; Anhui Quanchai Power Co., Ltd. |
| Displacement |
2970,2800,2977,3856,2968,2953,2499,2360,3856,3856,2968,4000,3230,4156,4052,4000,4000,3707,3000,4461,4000,3093,2800ml |
